3-6318491-6 TE Connectivity

3-6318491-6

SKU: 144608

Manufacturer: TE Connectivity

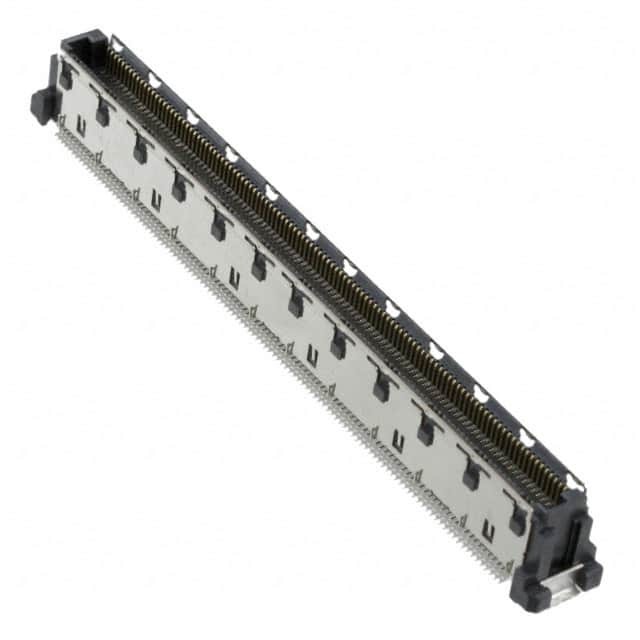

3-6318491-6 TE Connectivity Connector Headers and PCB Receptacles Board to Board Fine Pitch 220 0.5mm Solder - Arrow.com

Download sample

Request Free Samples

1770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Board to Board
Gender	PL
Number of Contacts	220
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	0.5
Body Orientation	Straight
Polarization Type	Dual Slot
Current Rating-Max(A)	0.5/Contact
Voltage Rating-Max	50VAC
Insulation Resistance (MOhm)	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Product Weight (g)	4.082
Length (mm)	61.8
Depth (mm)	6.2
Height (mm)	7.45
Contact Plating Thickness	0.2um
Terminal Form	Surface Mount
Package Width	6.1976
