3-173985-5

SKU: 31350

Manufacturer: TE Connectivity

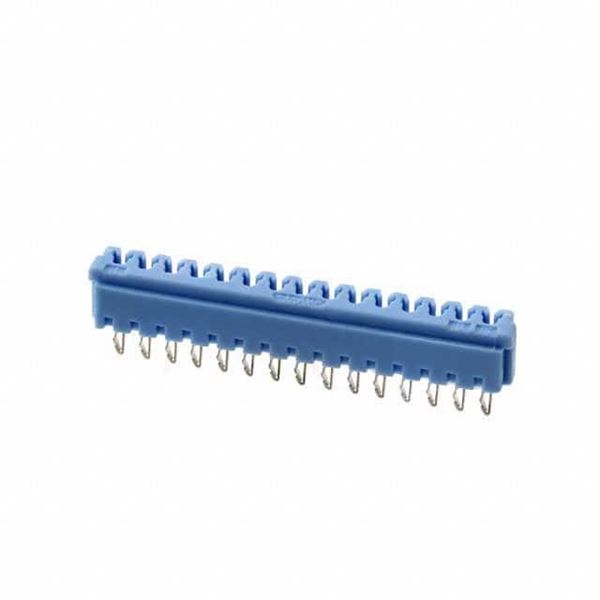

Conn IDC Connector HDR 15 POS 2mm Solder RA Thru-Hole Tray

3230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	IDC Connector
Gender	HDR
Number of Contacts	15
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	2
Body Orientation	Right Angle
Current Rating-Max(A)	2/Contact
Voltage Rating-Max	125VAC
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Length (mm)	32
Depth (mm)	4
Height (mm)	5.1
