292254-4

SKU: 79209

Manufacturer: TE Connectivity

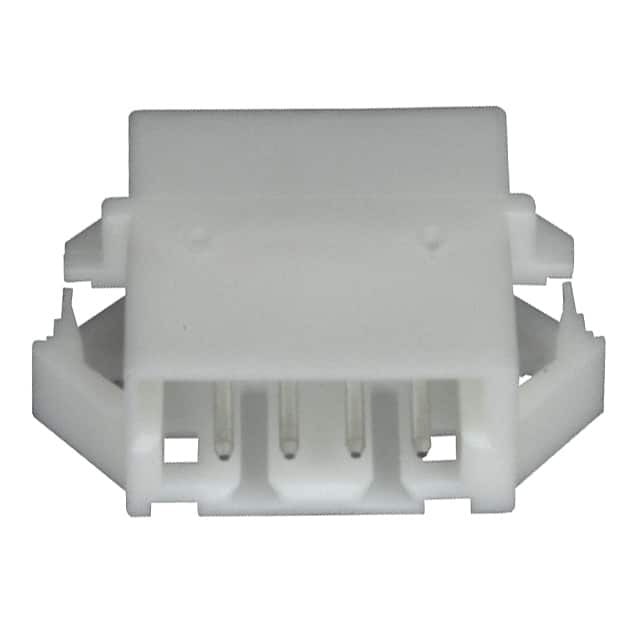

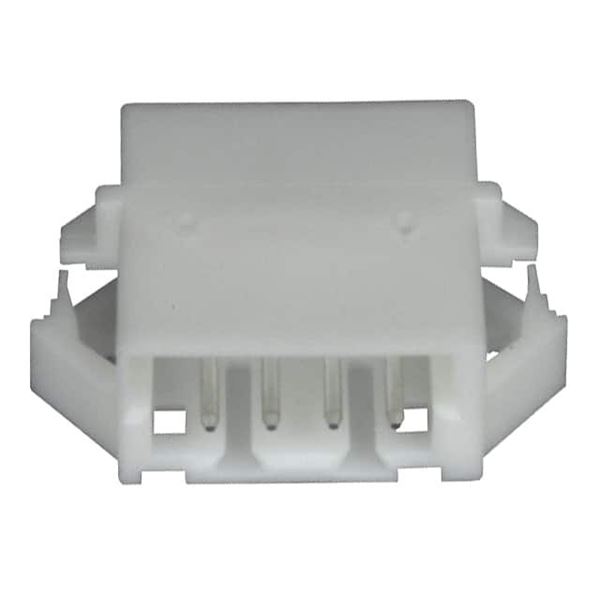

Conn Coupler Header M/M 4 POS 2mm ST Panel Mount Bag/Box

2130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.30
SVHC	Yes
Automotive	No
PPAP	No
Type	Coupler Header
Gender	M/M
Number of Contacts	4
Number of Rows	1
Terminal Pitch (mm)	2
Body Orientation	Straight
Current Rating-Max(A)	4/Contact
Voltage Rating-Max	125VAC
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-30
Operating Temperature-Max	105
Packing Method	Box
Length (mm)	17.4
Depth (mm)	12
Height (mm)	6.8
