281742-4 TE Connectivity

281742-4

SKU: 22687

Manufacturer: TE Connectivity

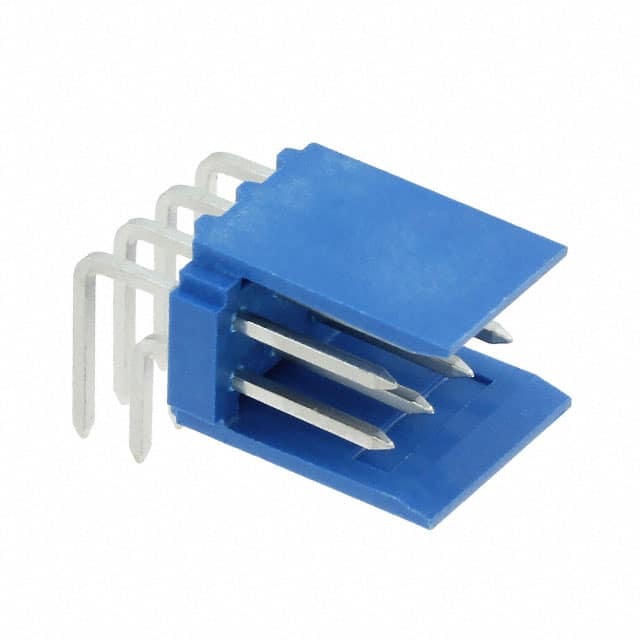

Conn Shrouded Header (2 Sides) HDR 8 POS 2.54mm Solder RA Side Entry Thru-Hole Box

Download sample

Request Free Samples

2710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Shrouded Header (2 Sides)
Gender	HDR
Number of Contacts	8
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Right Angle
Row Spacing (mm)	2.54
Current Rating-Max(A)	3/Contact
Insulation Resistance (MOhm)	5000
Operating Temperature-Min	-55
Operating Temperature-Max	105
Packing Method	Box
Length (mm)	10.16
Depth (mm)	15.34
Height (mm)	7.62
Tail Length (mm)	2.9
