2311765-1

SKU: 58187

Manufacturer: TE Connectivity

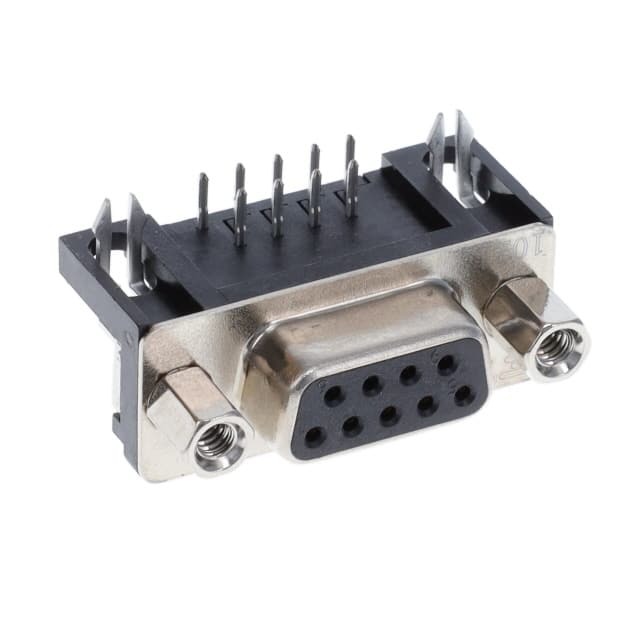

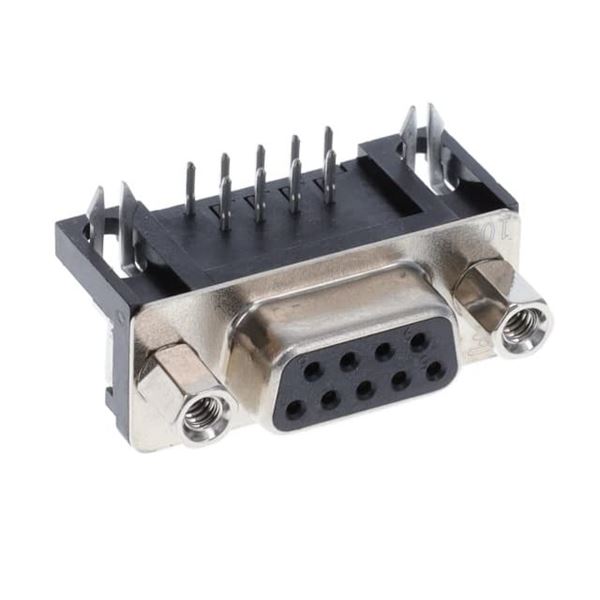

Conn D-Subminiature SKT 9 POS Solder RA Thru-Hole 9 Terminal 1 Port

4590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	D-Subminiature
Gender	RCP
Number of Contacts	9
Number of Terminals	9
Number of Ports	1
Number of Rows	2
Termination Method	Solder
Body Orientation	Right Angle
Contact Gender	SKT
Current Rating-Max(A)	3/Contact
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	25
Operating Temperature-Min	-55
Operating Temperature-Max	105
Shell Body Material	SPCC
Shell Plating	Nickel
Shell Size	E
Length (mm)	30.81
Depth (mm)	18.2
Height (mm)	12.55
Contact Plating	Gold Over Nickel
Contact Body Material	Phosphor Bronze
