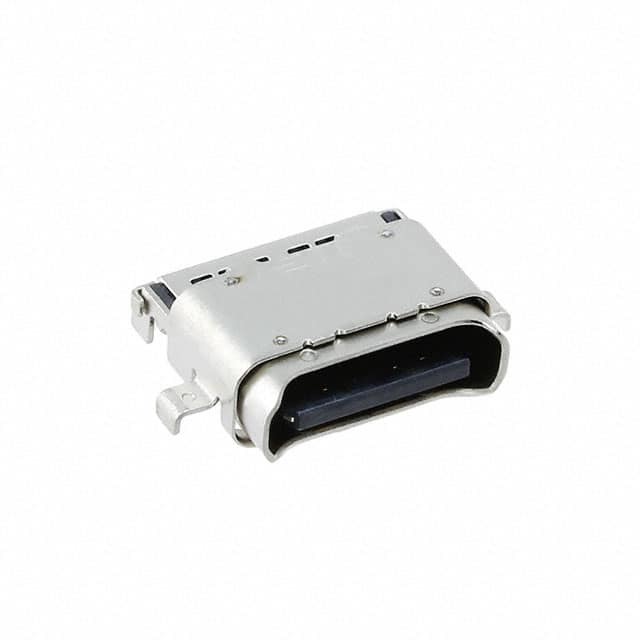

2295018-2 TE Connectivity

2295018-2

SKU: 7059

Manufacturer: TE Connectivity

Conn USB 3.1 Type C RCP 24 POS 0.5mm Solder RA SMD 24 Terminal 1 Port T/R

Download sample

Request Free Samples

2820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.80.00
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	USB 3.1 Type C
Gender	RCP
Number of Terminals	24
Number of Contacts	24
Number of Ports	1
Termination Method	Solder
Terminal Pitch (mm)	0.5
Body Orientation	Right Angle
Current Rating-Max(A)	5/Contact
Voltage Rating-Max	30V
Mating Cycle (Cycles)	10000
Shell Body Material	Stainless Steel
Shell Plating	Nickel
Operating Temperature-Min	-30
Operating Temperature-Max	85
Packing Method	Tape and Reel
Depth (mm)	8.1
Height (mm)	3.6
