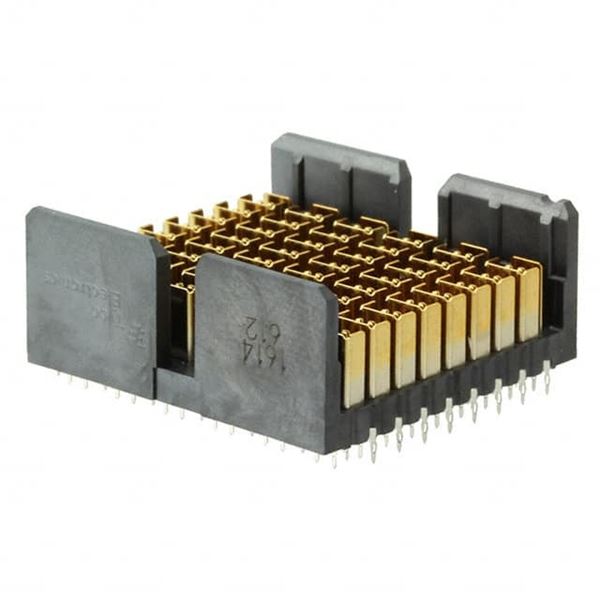

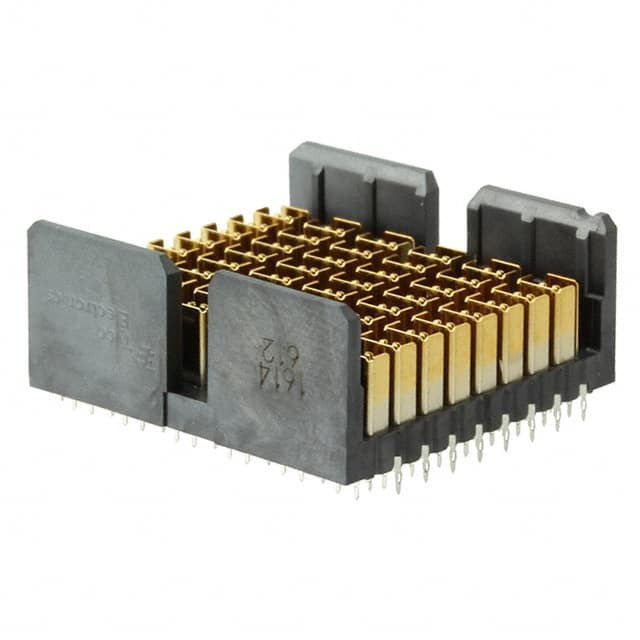

2180822-5

SKU: 5166

Manufacturer: TE Connectivity

Conn Backplane HDR 96Signal/54Ground POS 4.5mm Press Fit ST Thru-Hole Tube

Download sample

Request Free Samples

2890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Overview
Specifications
Contact Us

TE Connectivity 2180822-5 is available at WIN SOURCE. Please review product page below for detailed information, including 2180822-5 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 2180822-5 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Backplane
Gender	HDR
Number of Contacts	96Signal/54Ground
Termination Method	Press Fit
Terminal Pitch (mm)	4.5
Body Orientation	Straight
Current Rating-Max(A)	0.5/Contact
Voltage Rating-Max	80VAC
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tube
Length (mm)	25.4
Depth (mm)	27.4
Height (mm)	11.3
