215307-3

SKU: 121767

Manufacturer: TE Connectivity

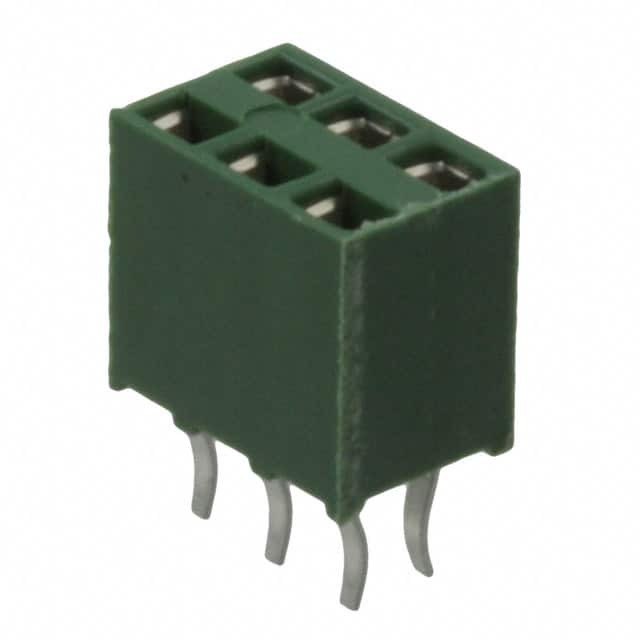

Conn Socket Strip RCP 3 POS 2.54mm Solder ST Top Entry Thru-Hole Carton

3530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Socket Strip
Gender	RCP
Number of Contacts	3
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Row Spacing (mm)	2.54
Current Rating-Max(A)	3/Contact
Maximum Contact Resistance (mOhm)	12
Operating Temperature-Min	-65
Operating Temperature-Max	125
Packing Method	Carton
Length (mm)	7.62
Depth (mm)	5.06
Height (mm)	7
Tail Length (mm)	3.1
