2129691-1

SKU: 100468

Manufacturer: TE Connectivity

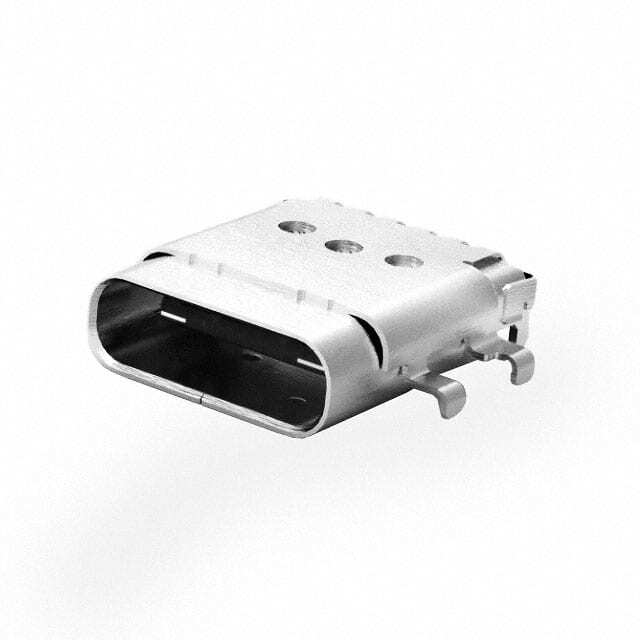

Conn USB 3.1 Type C RCP 24 POS Solder RA SMD/Thru-Hole 24 Terminal 1 Port Automotive T/R

2930 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.51
Automotive	Unknown
PPAP	Unknown
Type	USB 3.1 Type C
Gender	RCP
Number of Terminals	24
Number of Contacts	24
Number of Ports	1
Termination Method	Solder
Body Orientation	Right Angle
Current Rating-Max(A)	5/Contact
Voltage Rating-Max	30V
Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	40
Mating Cycle (Cycles)	10000
Shell Body Material	Stainless Steel
Shell Plating	Nickel
Operating Temperature-Min	-30
Operating Temperature-Max	85
Packing Method	Tape and Reel
Length (mm)	12.35
Depth (mm)	10.7
Height (mm)	3.34
