2098190-1

SKU: 6753

Manufacturer: TE Connectivity

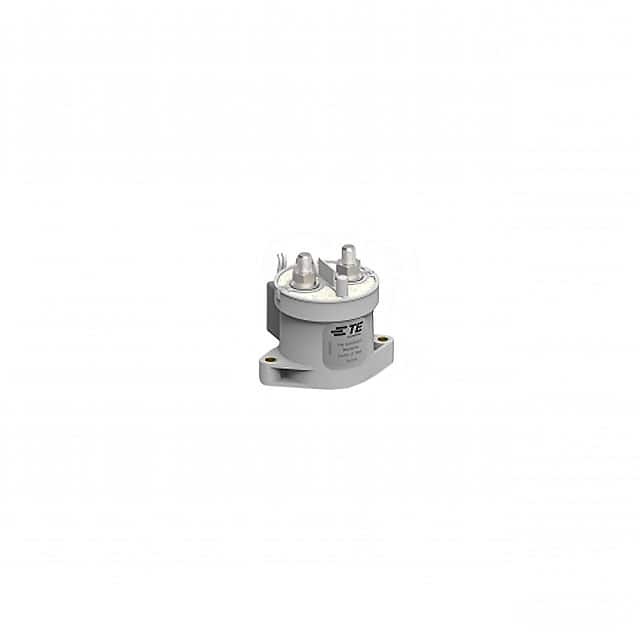

Contactor 12VDC SPST-NO-DM 500A Screw Mount Automotive

1870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
HTS	8536.41.00.50
Automotive	Unknown
PPAP	Unknown
Height (mm)	72.3
Product Weight (g)	430
Depth (mm)	64
Length (mm)	80.5
Contact Form	1 Form X
Seal	Sealed
DC Coil Voltage (V)	12
Contact Arrangement	SPST-NO-DM
Maximum DC Switching Voltage (V)	450
Current Rating-Max(A)	500
Terminal Form	Screw Mount
Terminal Form	Screw Terminal
Number of Terminals	2
Coil Resistance (Ohm)	3.14
Operating Temperature-Min	-40
