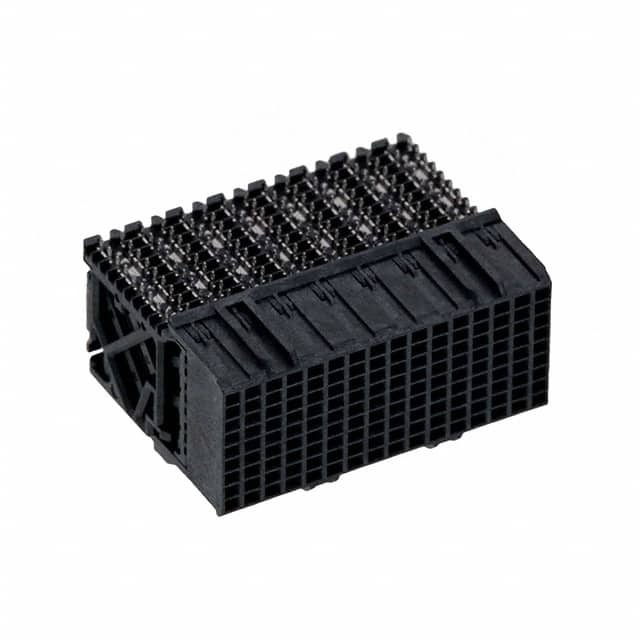

2007711-1 TE Connectivity

2007711-1

SKU: 150122

Manufacturer: TE Connectivity

Conn Backplane RCP 96Signal/48Ground POS 1.9mm Press Fit RA Thru-Hole Box/Tube

Download sample

Request Free Samples

1840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99 Export Control
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Backplane
Gender	RCP
Number of Contacts	96Signal/48Ground
Termination Method	Press Fit
Terminal Pitch (mm)	1.9
Body Orientation	Right Angle
Speed Rating (Gbps)	25
Current Rating-Max(A)	0.75/Contact
Voltage Rating-Max	120VDC
Insulation Resistance (MOhm)	10000
Operating Temperature-Min	-55
Operating Temperature-Max	85
Mating Cycle (Cycles)	200
Packing Method	Box
Length (mm)	30.4
Depth (mm)	24.2
Height (mm)	15.38
