2007562-5

SKU: 29783

Manufacturer: TE Connectivity

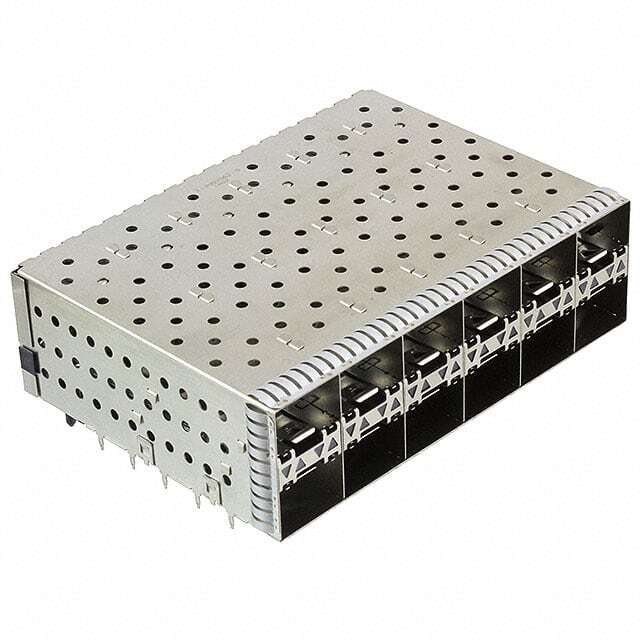

Conn SFP+ RCP 240 POS 1.6mm Press Fit RA Thru-Hole 240 Terminal 12 Port Tray

3060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
Automotive	No
PPAP	No
Type	SFP+
Gender	RCP
Number of Terminals	240
Number of Contacts	240
Number of Ports	12
Number of Loaded Positions	240
Termination Method	Press Fit
Terminal Pitch (mm)	1.6
Body Orientation	Right Angle
Voltage Rating-Max	120VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	100
Mating Cycle (Cycles)	100
Integrated Magnetics	No
Shell Body Material	Nickel Silver Alloy
Operating Temperature-Min	-55
Operating Temperature-Max	105
Packing Method	Tray
Product Style	Stacked
Depth (mm)	64.25
