1825967-2

SKU: 107478

Manufacturer: TE Connectivity

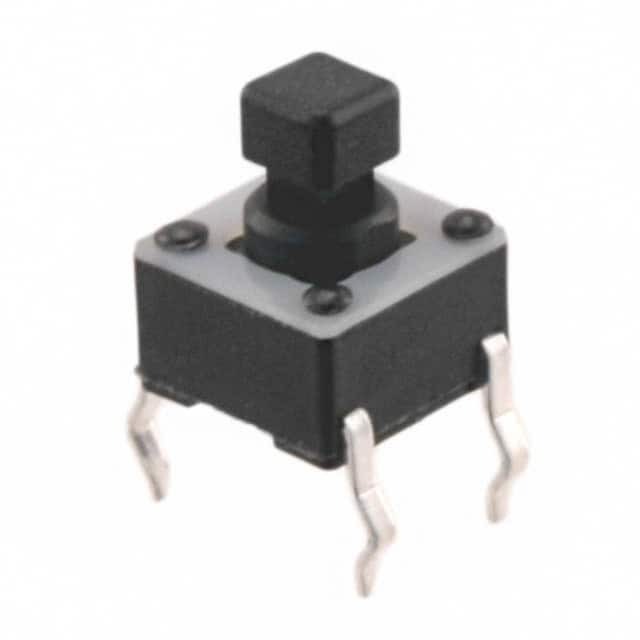

Switch Tactile N.O. SPST Square Button PC Pins 0.05A 24VDC 500000Cycles 1.6N Thru-Hole Loose

1870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.65
Automotive	No
PPAP	No
Type	Low Profile
Pole Throw Configuration	SPST
Actuator Style	Square Button
Switch Configuration	N.O.
Current Rating-Max(A)	0.05@24VDC
Dielectric Strength	500VAC
Minimum Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	100
Electrical Life (Cycles)	500000
Mechanical Life (Cycles)	500000
Operating Force (N)	1.6
Actuator Length (mm)	3.9
Terminal Form	Through Hole
Terminal Form	PC Pins
Number of Terminals	2
Terminal Pitch (mm)	4.49
Body Orientation	Straight
Operating Temperature-Min	-35
Operating Temperature-Max	105
Packing Method	Loose
Length (mm)	5.99
Depth (mm)	7.89
Height (mm)	7.5
