1825057-3

SKU: 8561

Manufacturer: TE Connectivity

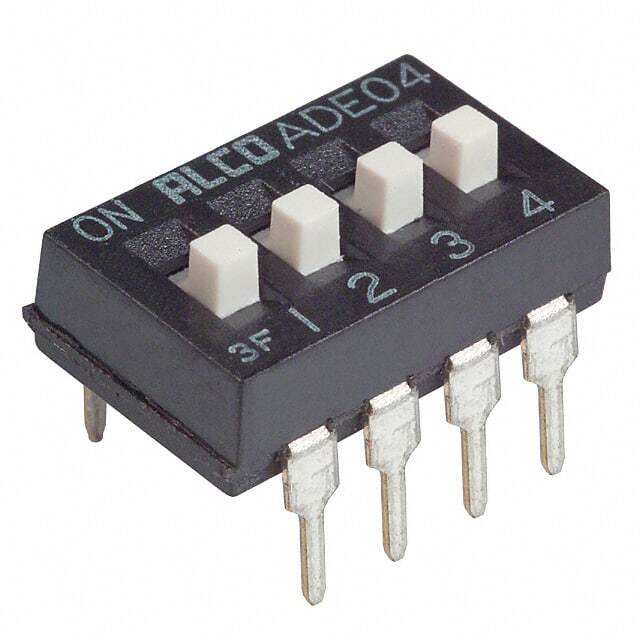

Switch DIP OFF ON SPST 4 Extended Slide 0.1A 24VDC PC Pins 2.54mm Thru-Hole Tube

2200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.32
SVHC	Yes
Automotive	No
PPAP	No
Type	DIP Switch
Actuator Style	Extended Slide
Pole Throw Configuration	SPST
Switch Configuration	OFF ON
Number of Positions	4
Current Rating-Max(A)	0.1@24VDC
Maximum Nonswitching Current (mA)	1000
Maximum DC Voltage Rating (V)	24
Dielectric Strength	500Vrms
Minimum Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	50
Electrical Life (Cycles)	1000
Actuator Length (mm)	1
Seal	No
Terminal Form	Through Hole
Terminal Form	PC Pins
Terminal Pitch (mm)	2.54
Number of Terminals	8
Total Pitch (mm)	7.62
Row Space (mm)	7.62
Body Orientation	Straight
Operating Temperature-Min	-30
Operating Temperature-Max	85
Packing Method	Tube
Body Length (mm)	12.14
Body Depth (mm)	7.5
Body Height (mm)	3.5
Length (mm)	12.14
Depth (mm)	8.35
Height (mm)	5.8
