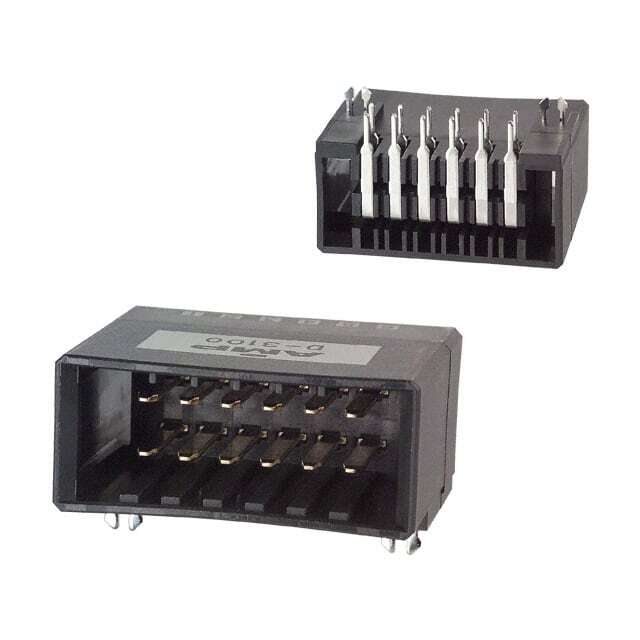

178306-2 TE Connectivity

178306-2

SKU: 8194

Manufacturer: TE Connectivity

Conn Power HDR 12 POS 3.81mm Solder RA Thru-Hole 12 Terminal 1 Port Tube

Download sample

Request Free Samples

3040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
Automotive	No
PPAP	No
Type	Power
Gender	HDR
Number of Contacts	12
Number of Terminals	12
Number of Ports	1
Termination Method	Solder
Terminal Pitch (mm)	3.81
Body Orientation	Right Angle
Current Rating-Max(A)	15/Contact
Voltage Rating-Max	250VAC
Operating Temperature-Min	-55
Operating Temperature-Max	105
Mounting Styles	Retention Leg
Housing Color	Black
Packing Method	Tube
Length (mm)	33.05
Depth (mm)	25.91
Height (mm)	15.93
Terminal Form	Through Hole
Contact Plating	Gold Over Nickel
