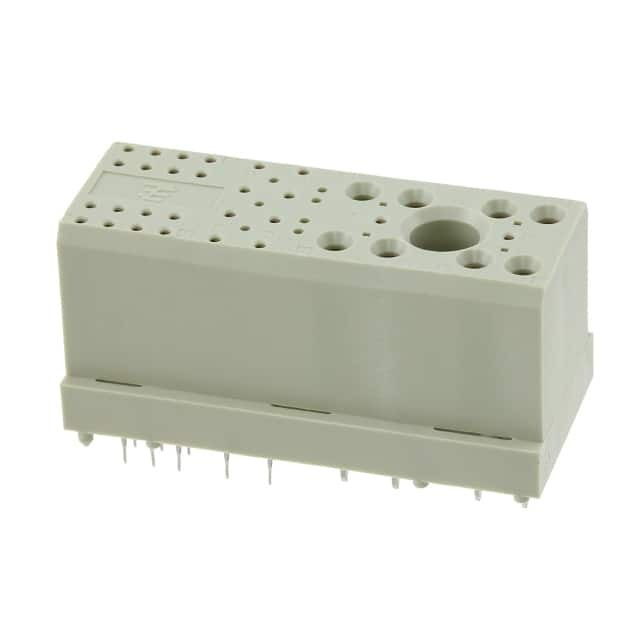

1766501-1 TE Connectivity

1766501-1

SKU: 9515

Manufacturer: TE Connectivity

Conn Power F 8Power/22Signal POS Press Fit ST Thru-Hole 30 Terminal 1 Port Tube

Download sample

Request Free Samples

2680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8536.69.40.40
SVHC	Yes
Automotive	No
PPAP	No
Type	Power
Gender	F
Number of Contacts	8Power/22Signal
Number of Terminals	30
Number of Ports	1
Termination Method	Press Fit
Body Orientation	Straight
Current Rating-Max(A)	(1/16)/Contact
Housing Color	Gray
Packing Method	Tube
Length (mm)	46.1
Depth (mm)	20.9
Height (mm)	22.4
Terminal Form	Through Hole
Contact Plating	Gold Over Nickel
