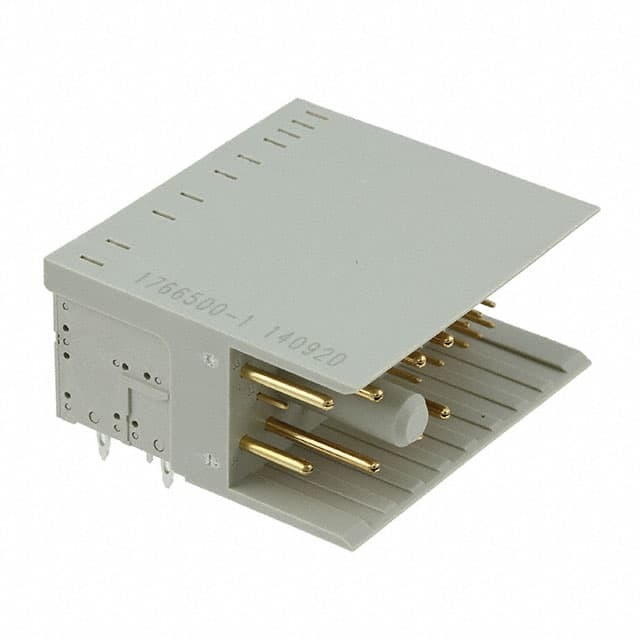

1766500-1

SKU: 6917

Manufacturer: TE Connectivity

Conn Board to Board PIN 8Power/22Signal POS Press Fit RA Thru-Hole Tube

1590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8536.69.80.00
SVHC	Yes
Automotive	No
PPAP	No
Type	Board to Board
Gender	PIN
Number of Contacts	8Power/22Signal
Number of Rows	2/4
Termination Method	Press Fit
Terminal Pitch (mm)	2.7/4.5
Body Orientation	Right Angle
Current Rating-Max(A)	30/Contact
Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	250
Packing Method	Tube
Length (mm)	46.1
Depth (mm)	41.3
Height (mm)	20.9
Contact Plating Thickness	0.76um
Tail Length (mm)	4.1
