1761465-4

SKU: 93295

Manufacturer: TE Connectivity

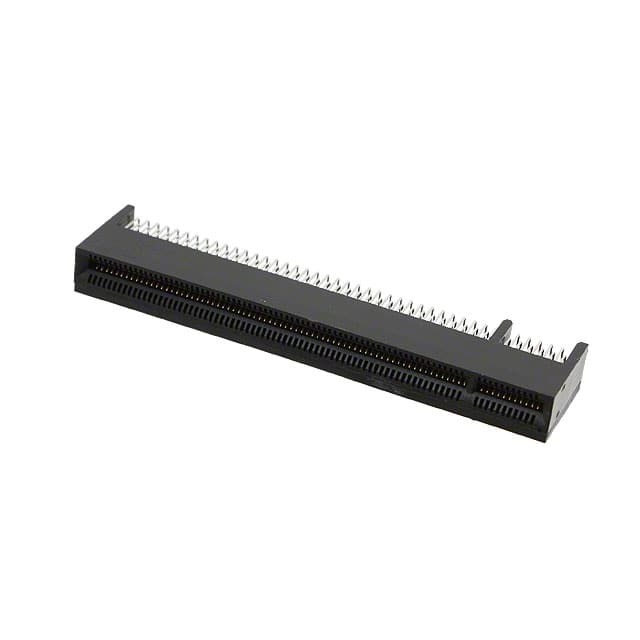

Conn PCI Express Card Edge SKT 164 POS 1mm Solder RA Thru-Hole Box/Tray

1480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	PCI Express Card Edge
Gender	SKT
Card Type	PCI Express
Number of Contacts	164
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	1
Body Orientation	Right Angle
Mounting Styles	2 Plastic Pylons
Current Rating-Max(A)	1.1/Contact
Voltage Rating-Max	50VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	30
Operating Temperature-Min	-40
Operating Temperature-Max	85
Mating Cycle (Cycles)	50
Packing Method	Box
Length (mm)	89
Depth (mm)	19.6
Height (mm)	9.4
Tail Cross Section (mm)	0.35
Tail Length (mm)	2.3
