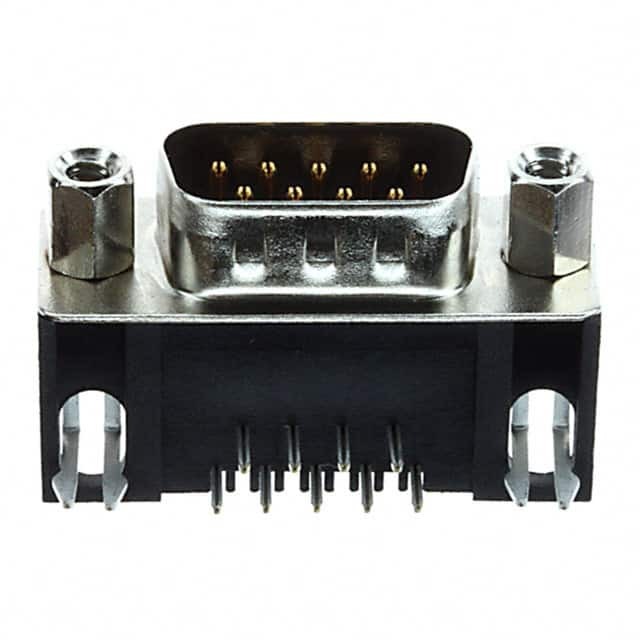

1734351-2

SKU: 22651

Manufacturer: TE Connectivity

Conn D-Subminiature PIN 9 POS 2.77mm Solder RA Thru-Hole 9 Terminal 1 Port Tray

2820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	D-Subminiature
Gender	PL
Number of Contacts	9
Number of Terminals	9
Number of Ports	1
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	1.38
Body Orientation	Right Angle
Contact Gender	PIN
Current Rating-Max(A)	2/Contact
Voltage Rating-Max	250VAC
Insulation Resistance (MOhm)	5000
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-55
Operating Temperature-Max	105
Shell Body Material	SPCC
Shell Plating	Nickel
Shell Size	1
Less Contact	No
Packing Method	Tray
Length (mm)	30.8
Depth (mm)	18.4
Height (mm)	12.5
Contact Plating	Gold Over Nickel
Contact Body Material	Brass
