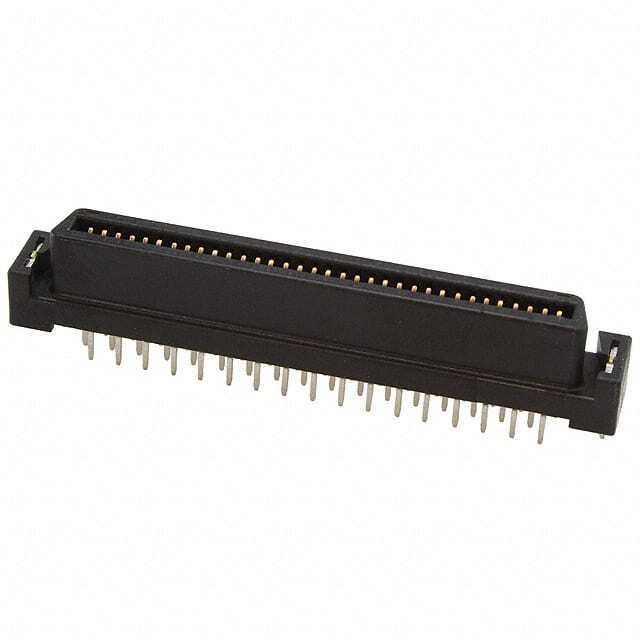

1734101-7

SKU: 5832

Manufacturer: TE Connectivity

Conn High Density RCP 68 POS 1.27mm Solder ST Thru-Hole 68 Terminal 1 Port Package

2910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	High Density
Gender	RCP
Number of Terminals	68
Number of Contacts	68
Number of Ports	1
Termination Method	Solder
Terminal Pitch (mm)	1.27
Body Orientation	Straight
Current Rating-Max(A)	1/Contact
Voltage Rating-Max	250VAC
Insulation Resistance (MOhm)	4
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-55
Operating Temperature-Max	85
Mating Cycle (Cycles)	500
Packing Method	Package
Length (mm)	54.53
Depth (mm)	7.1
Height (mm)	10
Contact Plating	Gold Flash Over Palladium Nickel
Contact Body Material	Phosphor Bronze
