171825-4

SKU: 128760

Manufacturer: TE Connectivity

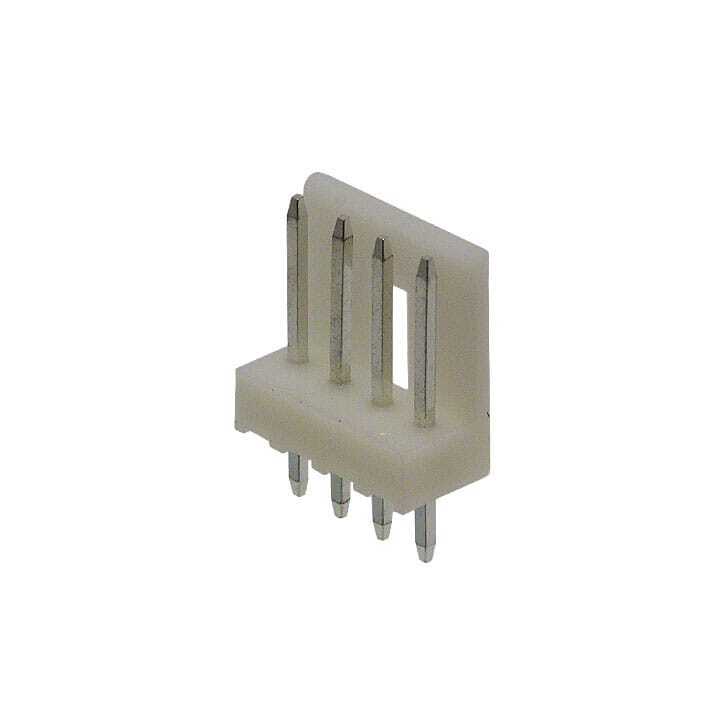

Conn Wire to Board HDR 4 POS 2.5mm Solder ST Top Entry Thru-Hole Bag

2500 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
Automotive	No
PPAP	No
Type	Wire to Board
Gender	HDR
Number of Contacts	4
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	2.5
Body Orientation	Straight
Current Rating-Max(A)	3.5/Contact
Voltage Rating-Max	250VAC
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-20
Operating Temperature-Max	95
Packing Method	Bag
Length (mm)	10
Depth (mm)	4.9
Height (mm)	10.4
Contact Plating Thickness	0.8um
Tail Length (mm)	3.6
