170325-1 TE Connectivity

170325-1

SKU: 157196

Manufacturer: TE Connectivity

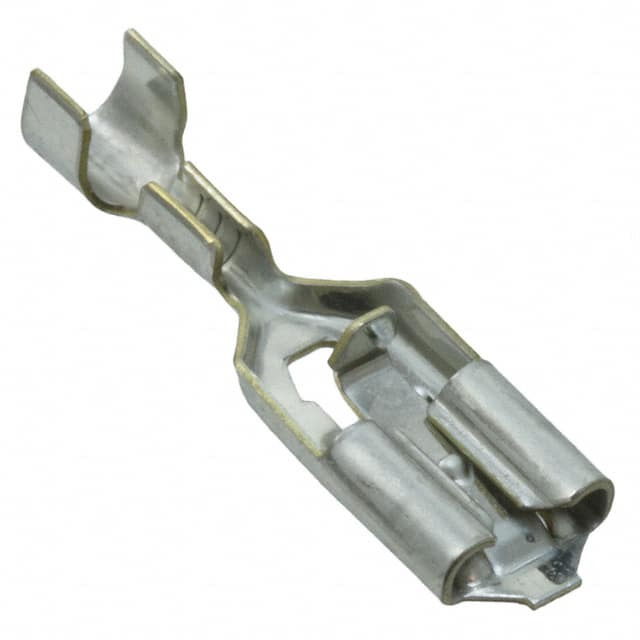

Quick Disconnect Terminal 16-20AWG Brass F 21.6mm Pre-Tin T/R

Download sample

Request Free Samples

2890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8538.90.81.40
SVHC	Yes
Automotive	No
PPAP	No
Type	Quick Disconnect Terminal
Gender	F
Termination Method	Crimp
Tab Size (mm²)	2.42
Body Orientation	Straight
Plating	Pre-Tin
Wire Size (AWG)	16-20
Operating Temperature-Min	-40
Operating Temperature-Max	110
Insulation	Nylon 6/6
Packing Method	Tape and Reel
Length (mm)	21.6
Depth (mm)	5.6
Tab Dimensions (mm)	4.75x0.51
