1658998-1

SKU: 128758

Manufacturer: TE Connectivity

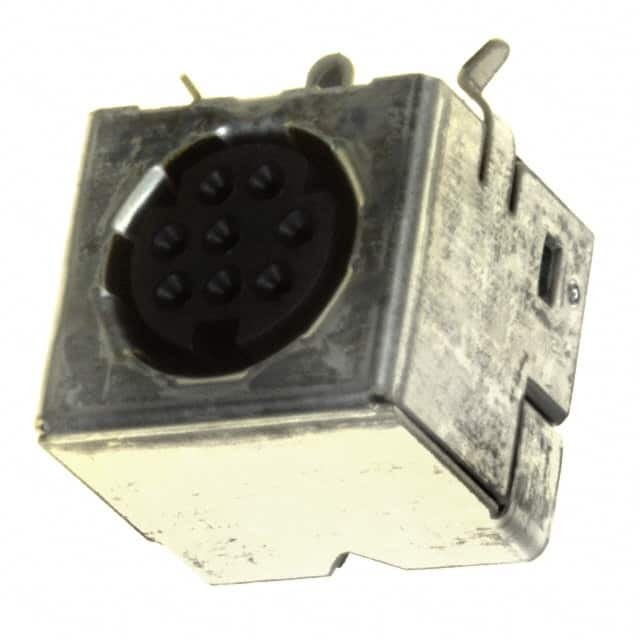

Conn Mini Circular DIN F 8 POS Solder RA Thru-Hole 8 Terminal 1 Port Tube

1410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8538.90.81.80
Automotive	No
PPAP	No
Type	Mini Circular DIN
Gender	RCP
Terminal Form	Through Hole
Body Orientation	Right Angle
Polarization	N
Number of Ports	1
Number of Contacts	8
Number of Terminals	8
Contact Gender	F
Termination Method	Solder
Less Contact	No
Contact Body Material	Copper Alloy
Contact Plating	Gold Over Nickel
Shell Body Material	Copper Alloy
Shell Plating	Tin
Housing Color	Black
Current Rating-Max(A)	0.5/Contact
Voltage Rating-Max	30VAC
Operating Temperature-Min	-55
Operating Temperature-Max	105
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	30
Mating Cycle (Cycles)	500
Length (mm)	14
Depth (mm)	12.83
Height (mm)	13
