1658622-5 TE Connectivity

1658622-5

SKU: 51107

Manufacturer: TE Connectivity

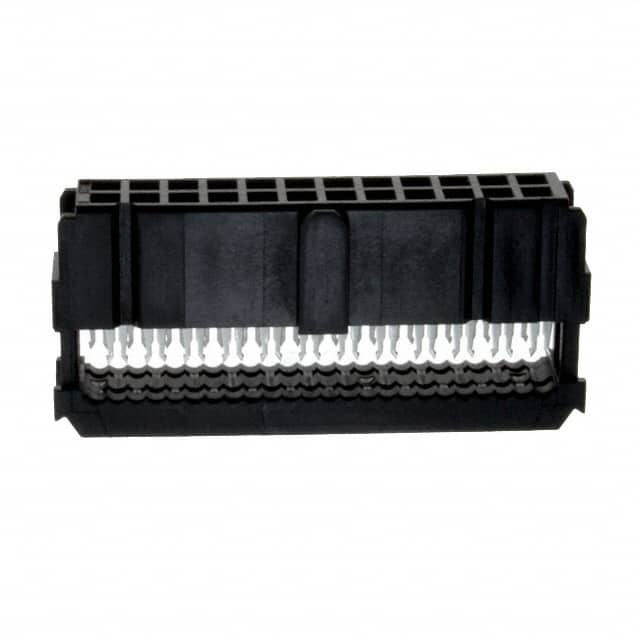

Conn IDC Connector RCP 24 POS 2.54mm Solder RA Thru-Hole Tube

Download sample

Request Free Samples

1860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
Automotive	No
PPAP	No
Type	IDC Connector
Gender	RCP
Number of Contacts	24
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Right Angle
Row Spacing (mm)	2.54
Current Rating-Max(A)	1/Contact
Voltage Rating-Max	250VAC
Insulation Resistance (MOhm)	5000
Operating Temperature-Min	-65
Operating Temperature-Max	105
Packing Method	Tube
Length (mm)	27.94
Depth (mm)	7.49
Height (mm)	15.16
