1658621-5 TE Connectivity

1658621-5

SKU: 43956

Manufacturer: TE Connectivity

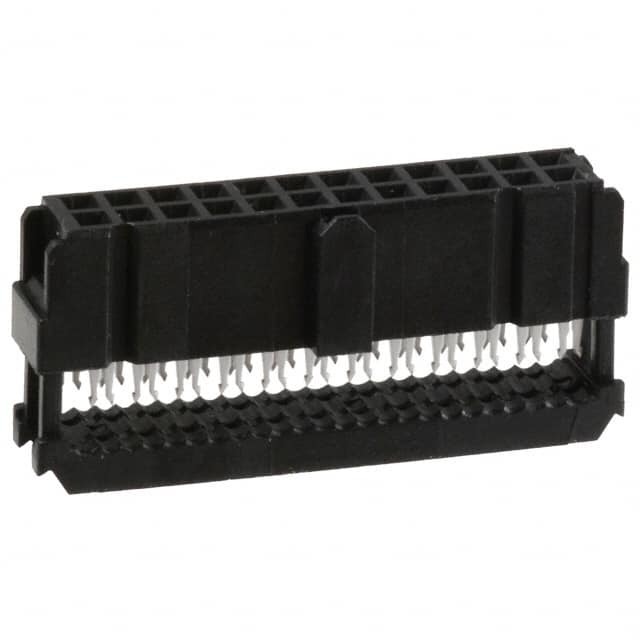

Conn IDC Connector F 24 POS 2.54mm Solder RA Thru-Hole Box/Carton

Download sample

Request Free Samples

1890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
Automotive	No
PPAP	No
Type	IDC Connector
Gender	F
Number of Contacts	24
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Right Angle
Polarization Type	Center Key
Row Spacing (mm)	2.54
Current Rating-Max(A)	1/Contact
Voltage Rating-Max	250VAC
Insulation Resistance (MOhm)	5000
Operating Temperature-Min	-65
Operating Temperature-Max	105
Packing Method	Box
Length (mm)	35.05
Depth (mm)	7.49
Height (mm)	15.16
