1658610-4

SKU: 22648

Manufacturer: TE Connectivity

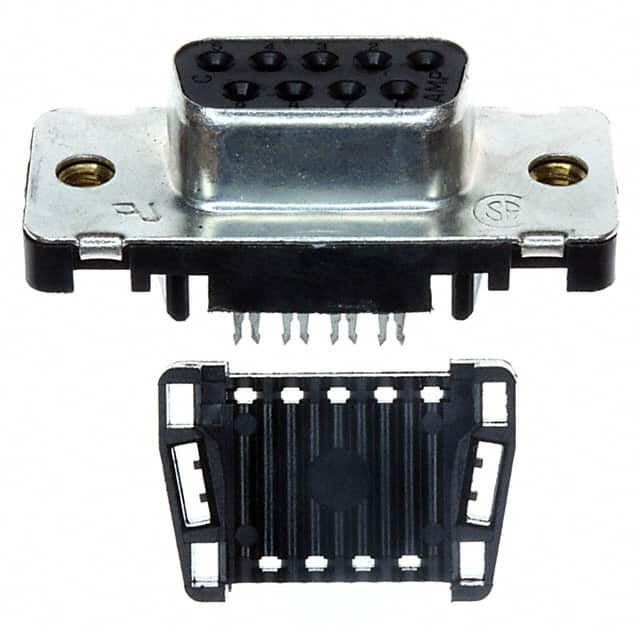

Conn D-Subminiature F 9 POS 1.38mm IDT RA Cable Mount 9 Terminal 1 Port Tube

2530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	D-Subminiature
Gender	F
Number of Contacts	9
Number of Terminals	9
Number of Ports	1
Number of Rows	2
Termination Method	IDT
Terminal Pitch (mm)	1.38
Body Orientation	Right Angle
Contact Gender	F
Current Rating-Max(A)	1.25/Contact
Voltage Rating-Max	250VAC
Insulation Resistance (MOhm)	5000
Maximum Contact Resistance (mOhm)	10
Operating Temperature-Min	-55
Operating Temperature-Max	105
Shell Body Material	Steel
Shell Plating	Bright Tin
Shell Size	1
Less Contact	No
Packing Method	Tube
Length (mm)	30.89
Depth (mm)	18.61
Height (mm)	12.59
Wire Size (AWG)	26-28
Housing Color	Black
Contact Plating Thickness	(0.76/1.27)um
Contact Plating	Gold Over Nickel
Contact Body Material	Phosphor Bronze
