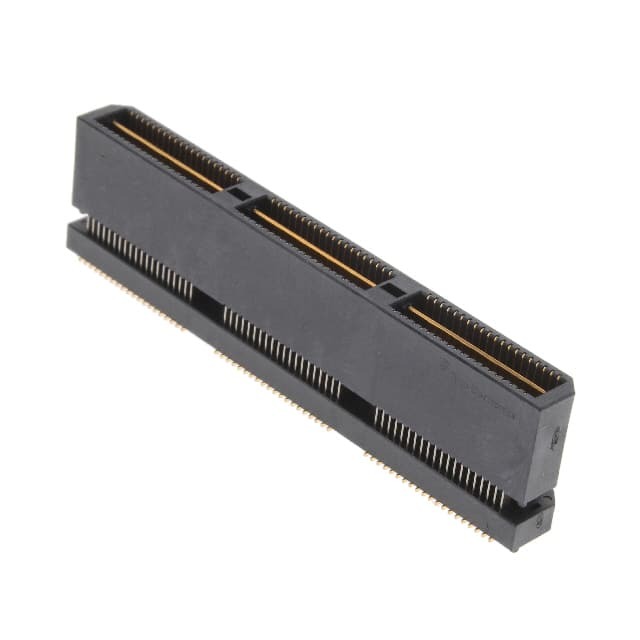

1658016-3 TE Connectivity

1658016-3

SKU: 114586

Manufacturer: TE Connectivity

Conn Mictor SB Connector PL 120 POS 0.8mm Solder ST Top Entry SMD Box/Tray

Download sample

Request Free Samples

2040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Mictor SB Connector
Gender	PL
Number of Contacts	120
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	0.8
Body Orientation	Straight
Row Spacing (mm)	4.02
Current Rating-Max(A)	(9.5/1.25)/Contact
Voltage Rating-Max	125VAC
Insulation Resistance (MOhm)	5000
Operating Temperature-Min	-65
Operating Temperature-Max	125
Packing Method	Tray
Length (mm)	60
Depth (mm)	7.14
Height (mm)	15.24
