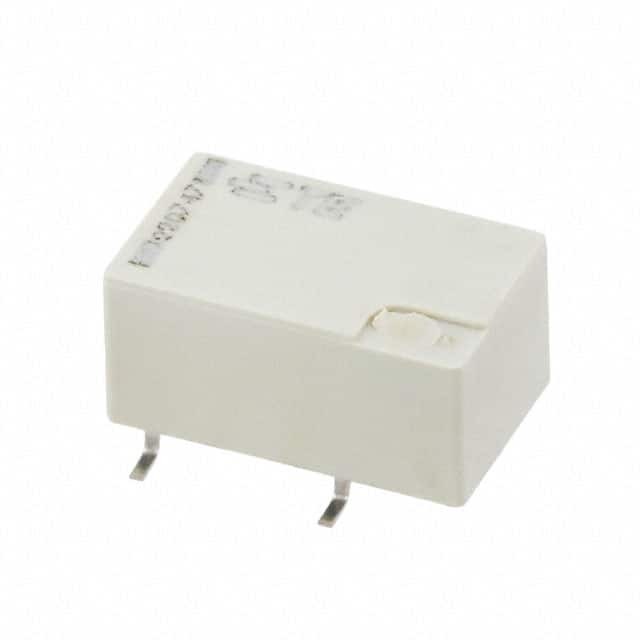

1462042-8

SKU: 36860

Manufacturer: TE Connectivity

Signal Relay 5VDC 4A SPDT(10x7.5x5.65)mm SMD

2850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.60
SVHC	Yes
Automotive	No
PPAP	No
Contact Arrangement	SPDT
Contact Form	1 Form C
DC Coil Voltage (V)	5
Coil Current (mA)	28.09
Coil Resistance (Ohm)	178
Maximum Contact Resistance (mOhm)	50
Maximum Pick-Up Voltage	3.75VDC
Minimum Dropout Voltage	0.5VDC
Maximum AC Switching Voltage (V)	250
Maximum DC Switching Voltage (V)	220
Maximum Switching Current (A)	4
Operate Time (ms)	3
Release Time (ms)	3
Electrical Life (Operations)	2500000
Mechanical Life (Operations)	100000000
Relay Construction	Non-Latching
Contact Body Material	Palladium Ruthenium/Gold
Maximum Switching Power	60W
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Number of Terminals	5
Seal	Sealed
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	0.75
Length (mm)	10
Depth (mm)	7.5
Height (mm)	5.65
