1462041-7

SKU: 135888

Manufacturer: TE Connectivity

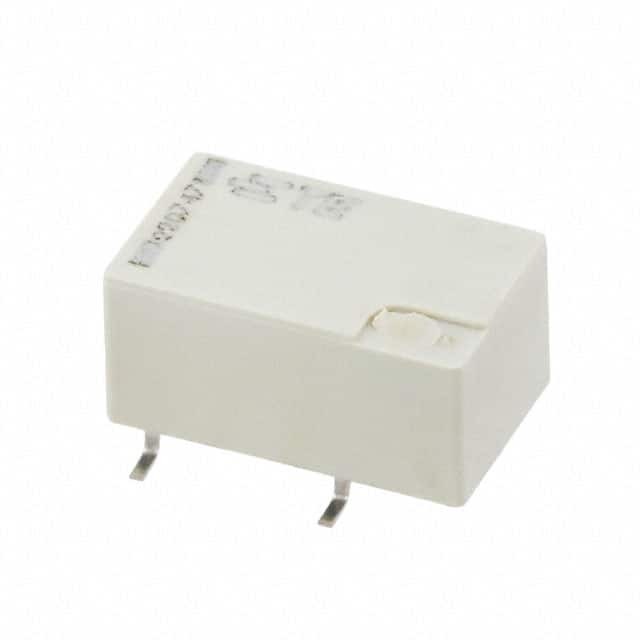

Signal Relay 5VDC 2A SPST-NO( (10mm 7.5mm 5.65mm)) SMD

2940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.20
Automotive	No
PPAP	No
Contact Arrangement	SPST-NO
Contact Form	1 Form A
DC Coil Voltage (V)	5
Coil Current (mA)	28.1
Coil Resistance (Ohm)	178
Maximum Contact Resistance (mOhm)	<100
Insulation Resistance (MOhm)	>1000
Maximum Pick-Up Voltage	3.75VDC
Minimum Dropout Voltage	0.5VDC
Maximum AC Switching Voltage (V)	250
Maximum DC Switching Voltage (V)	220
Maximum Switching Current (A)	2
Operate Time (ms)	1
Release Time (ms)	1
Electrical Life (Operations)	2500000
Mechanical Life (Operations)	100000000
Relay Construction	Non-Latching
Contact Body Material	Palladium Ruthenium/Gold
Maximum Switching Power	60W
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Number of Terminals	4
Seal	Hermetic Seal
Operating Temperature-Min	-40
Operating Temperature-Max	85
Package Type	SMD
Product Weight (g)	0.75
Length (mm)	10
Depth (mm)	7.5
Height (mm)	5.65
