1432866-1

SKU: 128752

Manufacturer: TE Connectivity

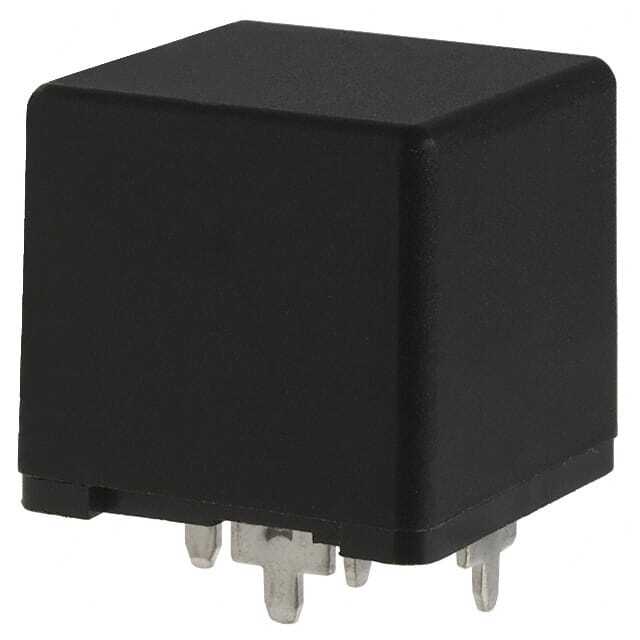

Power Relay 12VDC 90A SPST-NO(26.5x26.5x24.5)mm THT

2870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Custom
HTS	8536.41.00.50
Automotive	No
PPAP	No
Contact Arrangement	SPST-NO
Contact Form	1 Form A
DC Coil Voltage (V)	12
Coil Current (mA)	133.33
Coil Resistance (Ohm)	90
Maximum Pick-Up Voltage	7.8VDC
Minimum Dropout Voltage	1.2VDC
Maximum DC Switching Voltage (V)	16
Maximum Switching Current (A)	90
Operate Time (ms)	8
Release Time (ms)	5
Electrical Life (Operations)	100000
Mechanical Life (Operations)	10000000
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Non-Latching
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	4
Maximum Terminal Width (mm)	2.1
Operating Temperature-Min	-40
Operating Temperature-Max	85
Package Type	Dust Cover
Length (mm)	26.5
Depth (mm)	26.5
