1393776-3

SKU: 5426

Manufacturer: TE Connectivity

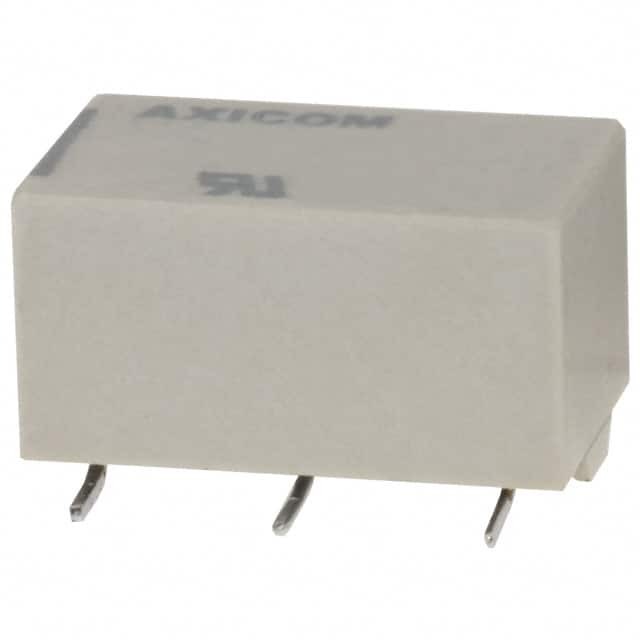

Signal Relay 5VDC 1A SPDT(13x7.85x8)mm SMD

Download sample

Request Free Samples

2500 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Overview
Specifications
Contact Us

TE Connectivity 1393776-3 is available at WIN SOURCE. Please review product page below for detailed information, including 1393776-3 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 1393776-3 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.50
Automotive	No
PPAP	No
Contact Arrangement	SPDT
Contact Form	1 Form C
DC Coil Voltage (V)	5
Coil Current (mA)	15.97
Coil Resistance (Ohm)	313
Maximum Contact Resistance (mOhm)	<=50
Maximum Pick-Up Voltage	3.75VDC
Minimum Dropout Voltage	0.5VDC
Maximum AC Switching Voltage (V)	150
Maximum DC Switching Voltage (V)	125
Maximum Switching Current (A)	1
Operate Time (ms)	2
Release Time (ms)	2
Electrical Life (Operations)	50000000
Mechanical Life (Operations)	1000000000
Relay Construction	Non-Latching
Contact Body Material	Palladium Nickel/Gold Rhodium
Maximum Switching Power	30W
Terminal Form	Surface Mount
Terminal Form	J Legs
Number of Terminals	6
Seal	Unsealed
Operating Temperature-Min	-40
Operating Temperature-Max	85
Package Type	SMD
Product Weight (g)	2
Length (mm)	13
Depth (mm)	7.85
