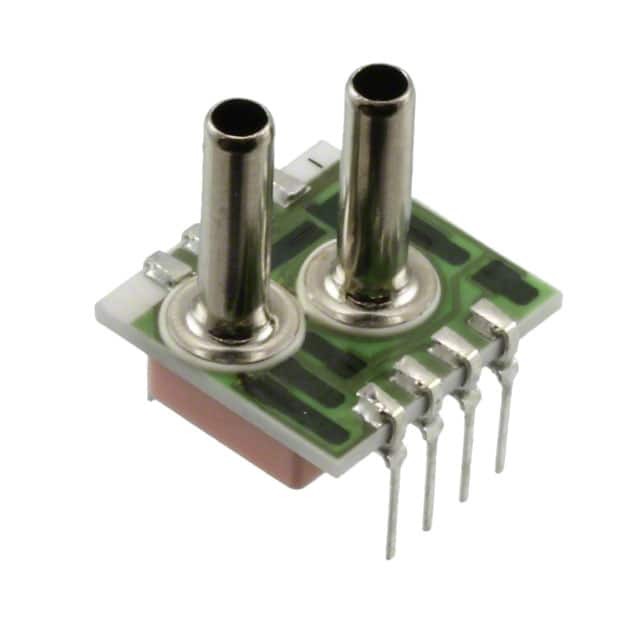

1210A-005D-3L

SKU: 150092

Manufacturer: TE Connectivity

Pressure Sensor 0V to 0.04V 0inH2O to 5inH2O Differential 8-Pin

1340 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	9026.20.80.00
Automotive	No
PPAP	No
Device Pressure Type	Differential
Operating Pressure Range	0inH2O to 5inH2O
Maximum Overload Pressure	200inH2O
Equivalent Overload Pressure Range (psi)	<20
Response Time (ms)	1
Output Voltage (V)	0 to 0.04
Maximum Supply Current (mA)	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Media	Gas
Pin Count	8
Terminal Form	Through Hole
Package Height	16.69
Package Length	15.24
Package Width	14.73
