104479-8

SKU: 72161

Manufacturer: TE Connectivity

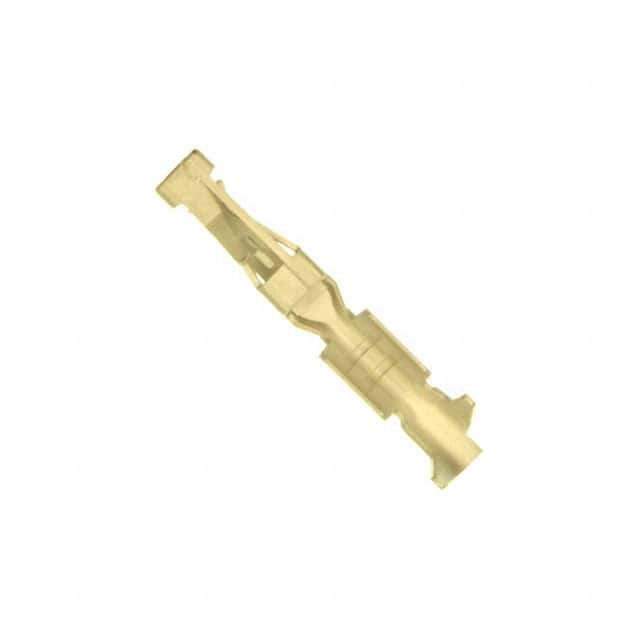

Contact SKT Crimp ST Cable Mount 20-24AWG Strip

2810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.90.40.00
SVHC	Yes
Automotive	No
PPAP	No
Connector Type	Connector Headers and PCB Receptacles
Contact Type	Signal
Gender	SKT
Termination Method	Crimp
Body Orientation	Straight
Current Rating-Max(A)	3
Voltage Rating-Max	250VAC
Maximum Contact Resistance (mOhm)	12
Operating Temperature-Min	-65
Operating Temperature-Max	105
Packing Method	Strip
Length (mm)	11.68
Depth (mm)	2.66
Wire Size (AWG)	20-24
