103957-2

SKU: 8320

Manufacturer: TE Connectivity

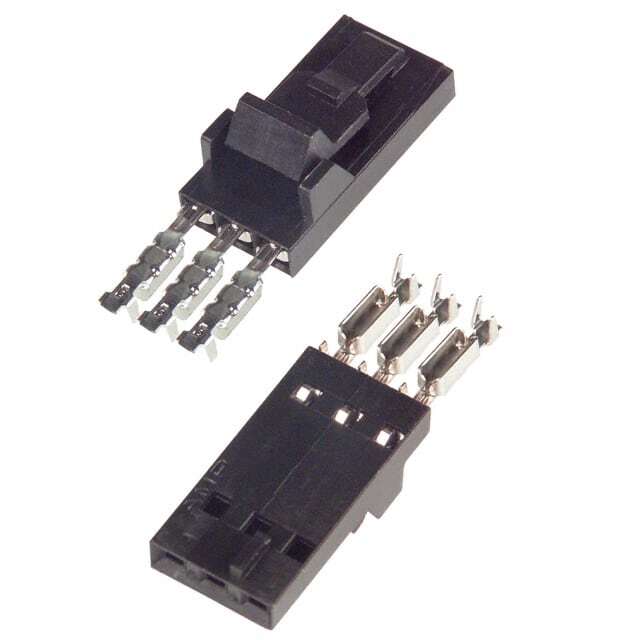

Conn Socket Strip F 3 POS 2.54mm IDT ST Cable Mount Tube

1900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
Automotive	No
PPAP	No
Type	Socket Strip
Gender	F
Number of Contacts	3
Number of Rows	1
Termination Method	IDT
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Current Rating-Max(A)	3/Contact
Voltage Rating-Max	267V
Insulation Resistance (MOhm)	5000
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-65
Operating Temperature-Max	105
Packing Method	Tube
Length (mm)	60.96
