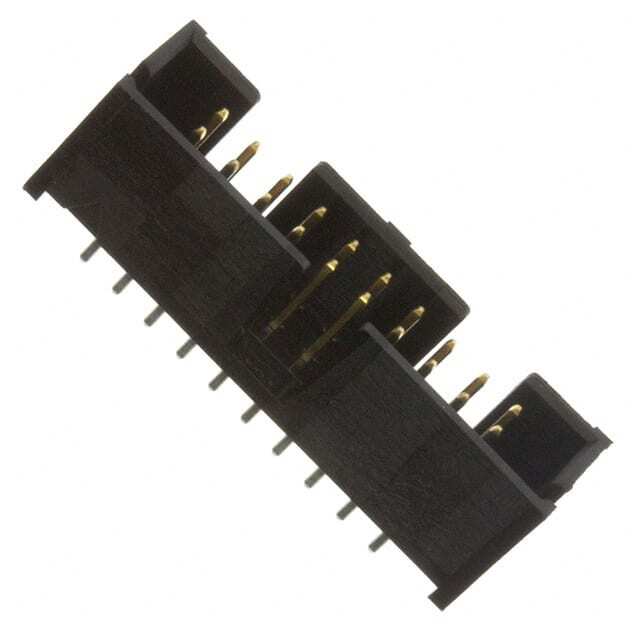

103309-5 TE Connectivity

103309-5

SKU: 79167

Manufacturer: TE Connectivity

Conn Shrouded Header (4 Sides) HDR 20 POS 2.54mm Solder ST Top Entry Thru-Hole Tube

Request Free Samples

3590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Shrouded Header (4 Sides)
Gender	HDR
Number of Contacts	20
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Polarization Type	Center Slot
Row Spacing (mm)	2.54
Current Rating-Max(A)	1/Contact
Insulation Resistance (MOhm)	5000
Operating Temperature-Min	-65
Operating Temperature-Max	105
Packing Method	Tube
Length (mm)	33.02
Depth (mm)	9.14
Height (mm)	9.78
Tail Length (mm)	3.05
