1-5179029-0

SKU: 7170

Manufacturer: TE Connectivity

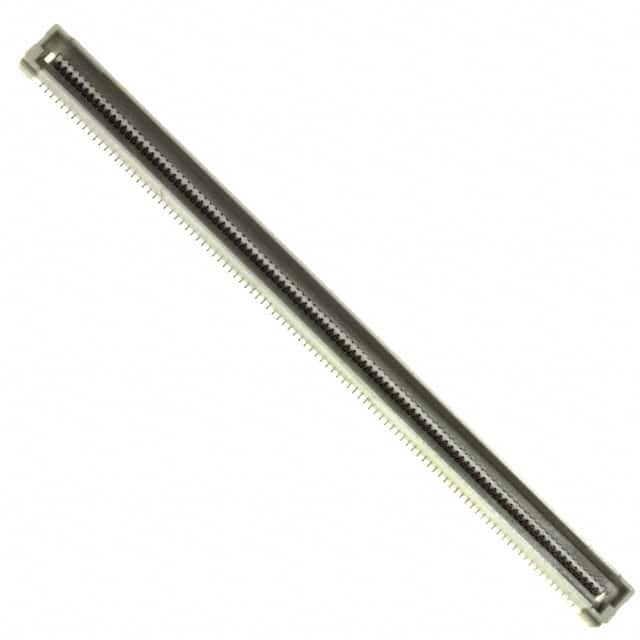

Conn Fine Pitch Connector PL 200 POS 0.8mm Solder ST Top Entry SMD Box/Tube

3290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Fine Pitch Connector
Gender	PL
Number of Contacts	200
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	0.8
Body Orientation	Straight
Current Rating-Max(A)	0.5/Contact
Voltage Rating-Max	100VAC
Maximum Contact Resistance (mOhm)	30
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Length (mm)	85.8
Depth (mm)	6
Height (mm)	5.6
