1-480305-0

SKU: 5258

Manufacturer: TE Connectivity

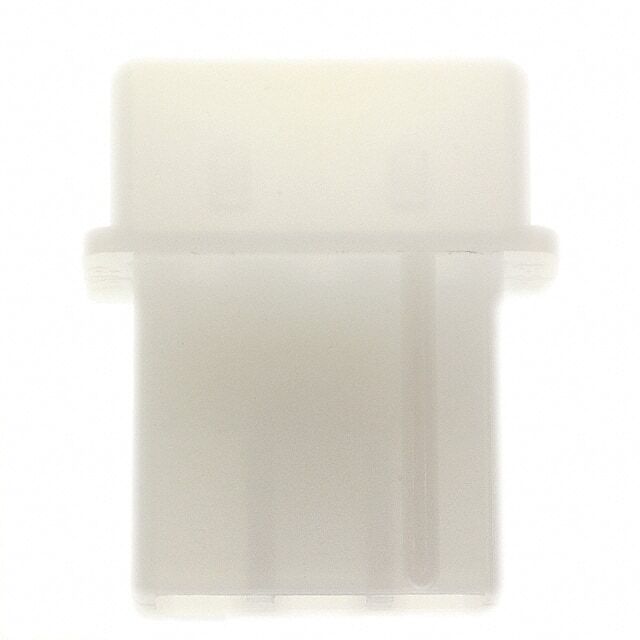

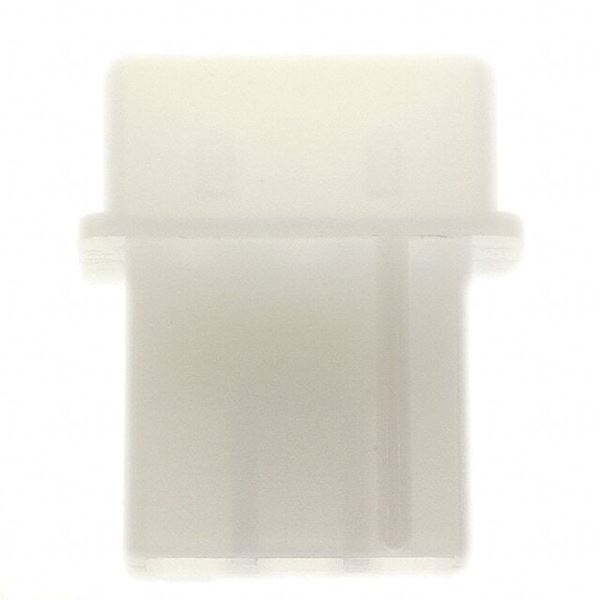

Conn Housing RCP 3 POS 5.08mm Crimp ST Cable Mount Natural Package

Download sample

Request Free Samples

1640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Overview
Specifications
Contact Us

TE Connectivity 1-480305-0 is available at WIN SOURCE. Please review product page below for detailed information, including 1-480305-0 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 1-480305-0 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8538.90.60.00
Automotive	No
PPAP	No
Type	Housing
Gender	RCP
Number of Contacts	3
Number of Rows	1
Termination Method	Crimp
Terminal Pitch (mm)	5.08
Body Orientation	Straight
Current Rating-Max(A)	13/Contact
Voltage Rating-Max	250VAC
Insulation Resistance (MOhm)	500
Operating Temperature-Min	-55
Operating Temperature-Max	105
Mating Cycle (Cycles)	50
Packing Method	Package
Length (mm)	20.57
Depth (mm)	8.26
Height (mm)	23.62
