1-406541-1

SKU: 9100

Manufacturer: TE Connectivity

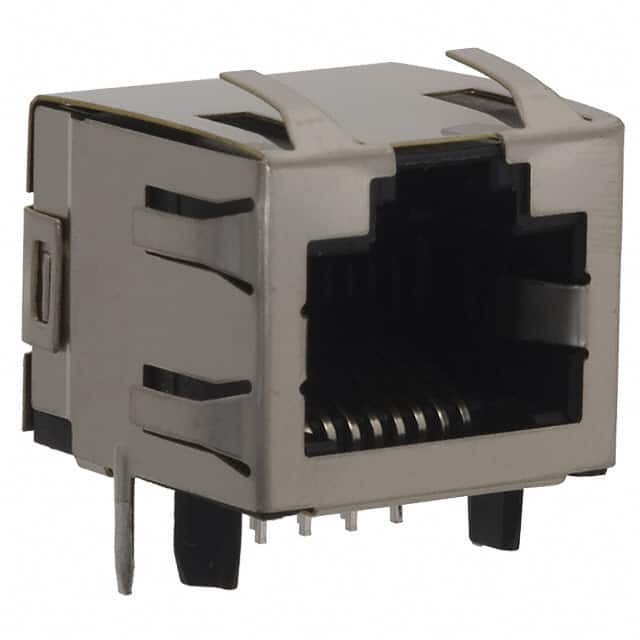

Conn RJ-45 F 8 POS 1.02mm Solder RA Thru-Hole 8 Terminal 1 Port Cat 5 Tray

1300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	RJ-45
Gender	F
Number of Terminals	8
Number of Contacts	8
Number of Ports	1
Number of Loaded Positions	8
Category Number	Cat 5
Termination Method	Solder
Terminal Pitch (mm)	1.02
Body Orientation	Right Angle
Current Rating-Max(A)	1.5/Contact
Voltage Rating-Max	150VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	30
Mating Cycle (Cycles)	750
Integrated Magnetics	No
Shell Body Material	Copper Zinc Alloy
Shell Plating	Nickel
Operating Temperature-Min	-40
Shielding	Yes
Operating Temperature-Max	85
Packing Method	Tray
Product Style	Single
Length (mm)	16.26
Depth (mm)	15.75
Height (mm)	13.35
Ethernet Speed	10/100 Base-T
Spring Option	Yes
Tab Direction	Up
Distance Between Begs (mm)	12.7
Distance Between Shield Pins (mm)	16.26
