1-292253-5

SKU: 7389

Manufacturer: TE Connectivity

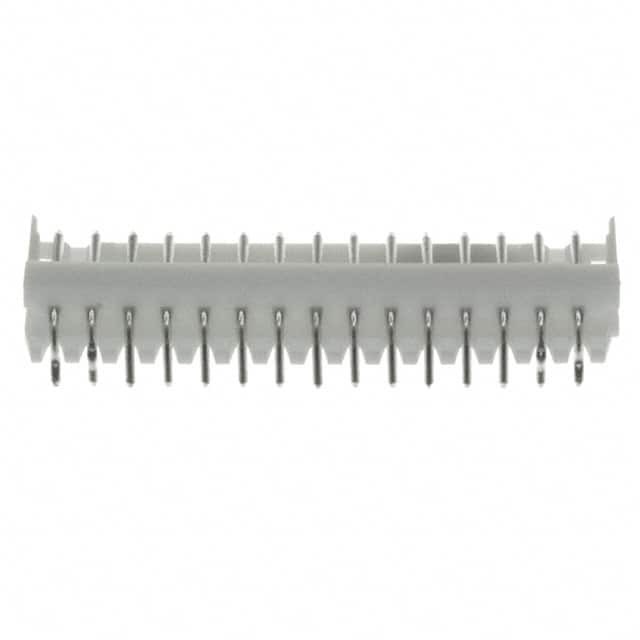

Conn Wire to Board HDR 15 POS 2mm Solder RA Side Entry Thru-Hole Bag/Box

1290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
Automotive	No
PPAP	No
Type	Wire to Board
Gender	HDR
Number of Contacts	15
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	2
Body Orientation	Right Angle
Polarization Type	Dual Slot
Current Rating-Max(A)	4/Contact
Voltage Rating-Max	125VDC
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-30
Operating Temperature-Max	105
Packing Method	Bag
Length (mm)	31.8
Depth (mm)	8.8
Height (mm)	4
Tail Length (mm)	3.2
