1-215083-4

SKU: 6486

Manufacturer: TE Connectivity

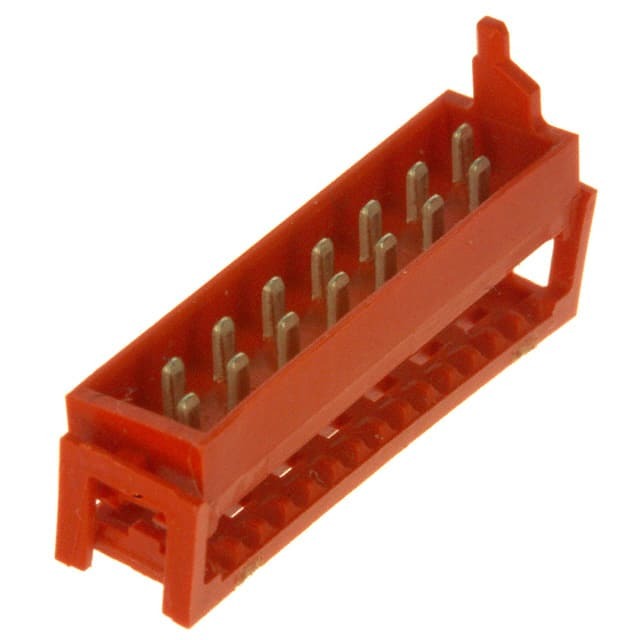

Conn IDC Connector M 14 POS 1.27mm IDT RA Cable Mount T/R

2640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
Automotive	No
PPAP	No
Type	IDC Connector
Gender	M
Number of Contacts	14
Number of Rows	2
Termination Method	IDT
Terminal Pitch (mm)	1.27
Body Orientation	Right Angle
Row Spacing (mm)	1.5
Current Rating-Max(A)	1.5/Contact
Voltage Rating-Max	100VDC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	10
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	21.3
Depth (mm)	5.1
Height (mm)	6.8
