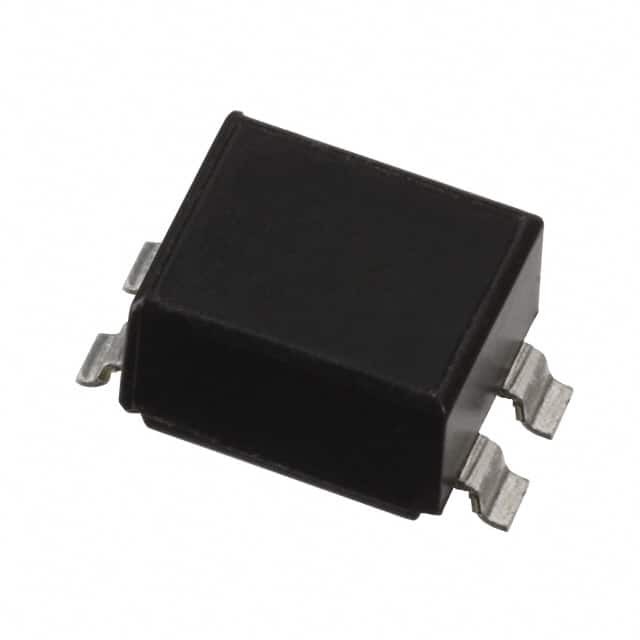

ZJYS81R5-2P24T-G01

SKU: 116197

Manufacturer: TDK

Common Mode Chokes Dual 23.5uH 1kOhm 1MHz 0.5A 0.15Ohm DCR SMD Automotive T/R

45180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	Signal Line
Configuration	Dual
Number of Lines	2
Inductance (H)	23.5u
Leakage Inductance (H)	150n
Impedance (Ohm)	1k@10MHz
Test Frequency (Hz)	1M
Maximum DC Current (A)	0.5
Maximum DC Resistance (Ohm)	0.15
Minimum Insulation Resistance (Ohm)	100M
Voltage Rating	80VDC
Terminal Form	Surface Mount
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	9.5
Depth (mm)	6
