VS30C-5 TDK

VS30C-5

SKU: 108984

Manufacturer: TDK

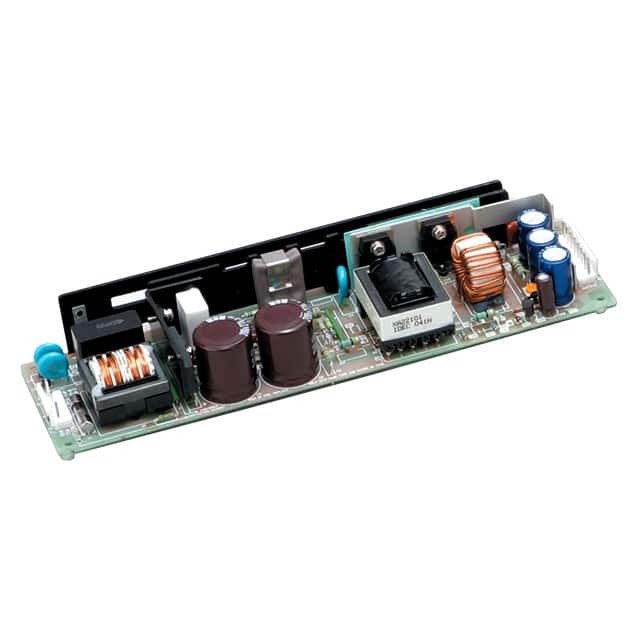

AC/DC Power Supply Single-OUT 5V 6A 7-Pin

Request Free Samples

1330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.40.95.10
Type	Regulated
Style	Open Frame
Input/Output Type	AC/DC
Number of Outputs	1
Output Type	Fixed
Output Voltage (V)	5
Output Current (A)	6
Minimum AC Input Voltage (V)	85
Maximum AC Input Voltage (V)	132
Minimum DC Input Voltage (V)	110
Maximum DC Input Voltage (V)	175
Minimum Isolation Voltage	2000VAC
Line Regulation	20mV
Load Regulation	40mV
Input Frequency (Hz)	47 to 440
Efficiency (%)	75
Input Connector Type	Pin Terminal Block
Output Connector Type	Pin Terminal Block
Power Indicator	No
Ripple & Noise	120mV
Medical	No
Operating Temperature-Min	-10
Operating Temperature-Max	60
Pin Count	7
Terminal Form	Screw
Package Height	25 - 3(Max)
Package Length	132.5
Package Width	50
