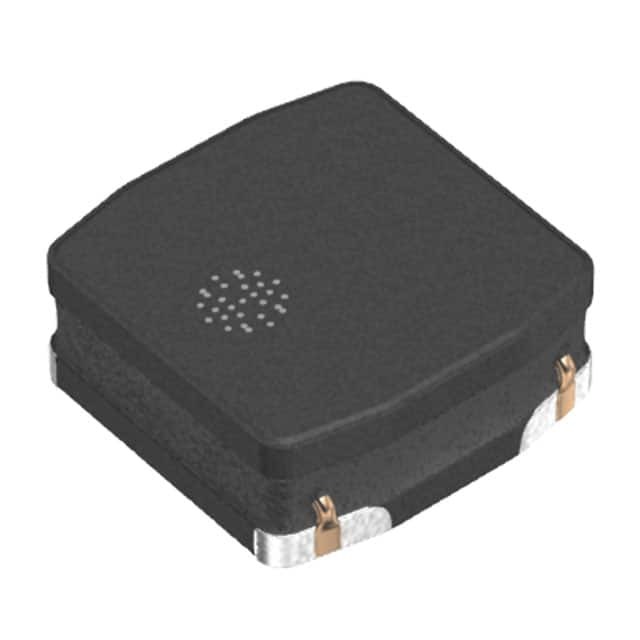

VLS3012HBX-R47M

SKU: 108968

Manufacturer: TDK

Inductor Power Shielded Wirewound 0.47uH 20% 1MHz Metal 5.32A 0.035Ohm DCR 1212 T/R

1180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8504.50.40.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Metal
Inductance (H)	0.47u
Inductance Decrease Percentage @ Isat (%)	30
Tolerance	20%
Inductance Test Frequency (Hz)	1M
Maximum DC Current (A)	5.32
Maximum Saturation Current (A)	7.46
Maximum DC Resistance (Ohm)	0.035
Number of Terminals	2
Case Size	1212
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	3.1
Terminal Form	Surface Mount
Depth (mm)	3.1
