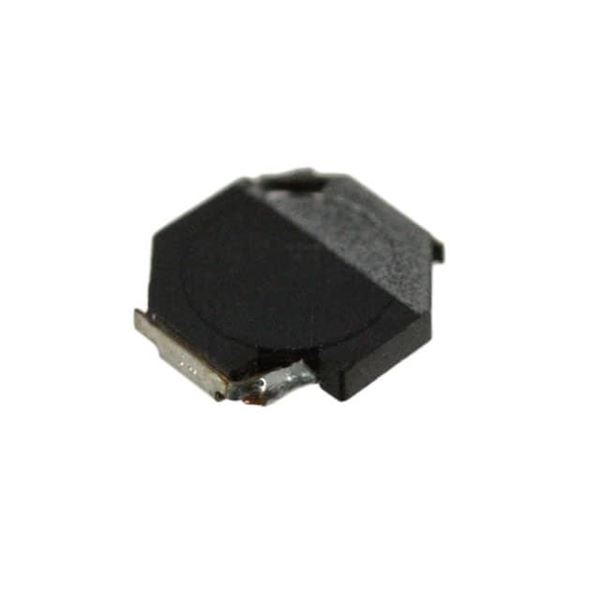

VLF5014AT-6R8MR99

SKU: 86169

Manufacturer: TDK

Inductor Power Shielded Wirewound 6.8uH 20% 100KHz Ferrite 0.99A 0.19Ohm DCR T/R

2100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	6.8u
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	0.99(Typ)
Maximum Saturation Current (A)	1.4
Maximum DC Resistance (Ohm)	0.19
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	5
Terminal Form	Surface Mount
Depth (mm)	4.8
