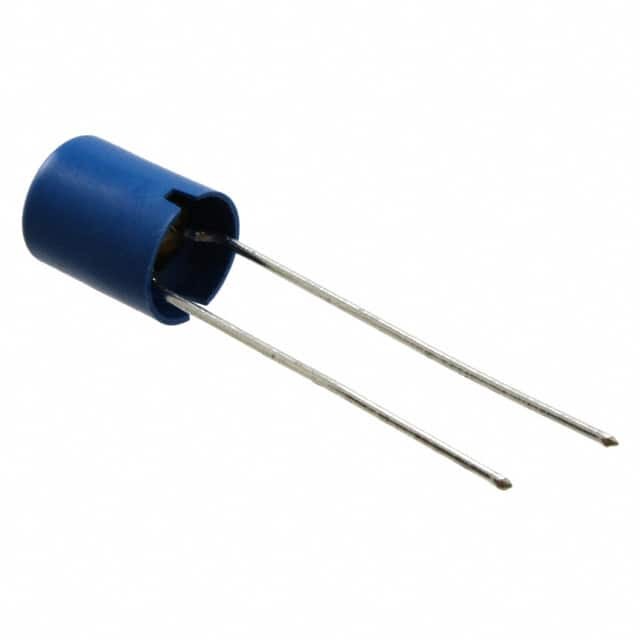

TSL0709RA-221KR44-PF

SKU: 66623

Manufacturer: TDK

Inductor Power Wirewound 220uH 10% 1KHz 20Q-Factor 460mA 720mOhm DCR RDL Ammo

2800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Inductance (H)	220u
Tolerance	10%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	0.46
Maximum Saturation Current (A)	0.44
Maximum DC Resistance (Ohm)	0.72
Minimum Quality Factor	20
Quality Test Frequency (Hz)	796K
Minimum Self Resonant Frequency (Hz)	3.2M
Terminal Form	Through Hole
Lead Style	Radial
Terminal Pitch (mm)	5
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Ammo
Product Diameter (mm)	8
