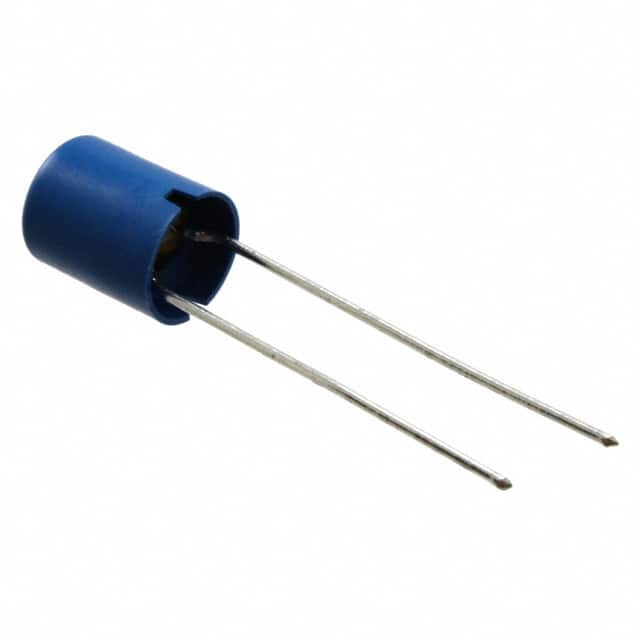

TSL0709RA-100K1R9-PF

SKU: 80617

Manufacturer: TDK

Inductor Power Wirewound 10uH 10% 1KHz 20Q-Factor 1.9A 43mOhm DCR RDL Ammo

1230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Inductance (H)	10u
Tolerance	10%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	1.9
Maximum Saturation Current (A)	2.1
Maximum DC Resistance (Ohm)	0.043
Minimum Quality Factor	20
Quality Test Frequency (Hz)	2.52M
Minimum Self Resonant Frequency (Hz)	19M
Terminal Form	Through Hole
Lead Style	Radial
Terminal Pitch (mm)	5
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Ammo
Product Diameter (mm)	8
