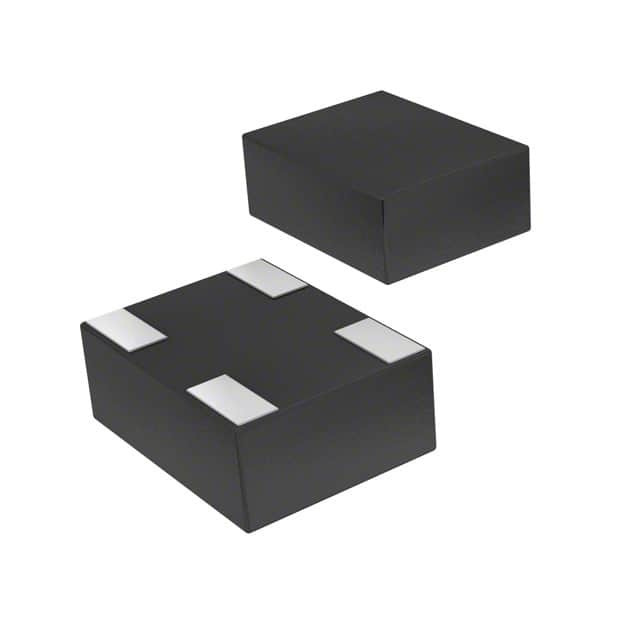

TFSC06054125-2113A1

SKU: 29122

Manufacturer: TDK

RF Couplers Uni-directional Coupling 19dB/12.5dB 2.4GHz to 2.5GHz/4.9GHz to 5.85GHz 4-Pin SMD T/R

172890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
Automotive	No
PPAP	No
Type	Directional
Module/IC Classification	IC
Configuration	Uni-directional
Frequency Range (GHz)	4.9 to 5.85
Primary/Secondary Maximum VSWR	1.3/1.3
Maximum Insertion Loss (dB)	0.5
Typical Coupling (dB)	12.5
Minimum Directivity (dB)	15
Impedance (Ohm)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	SMD
Original Package	SMD
Pin Count	4
Terminal Form	Surface Mount
Package Length	0.65
Package Width	0.5
