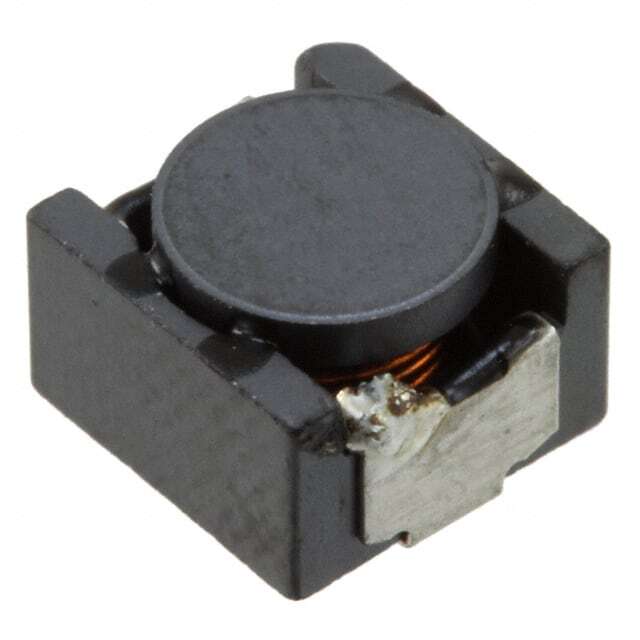

RLF7045T-4R7N2R5-D

SKU: 144114

Manufacturer: TDK

Inductor Power Shielded Wirewound 4.7uH 30% 100KHz Ferrite 2.5A 0.036Ohm DCR Automotive T/R

1990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8504.50.40.00
Automotive	Yes
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	4.7u
Tolerance	30%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	2.5(Typ)
Maximum Saturation Current (A)	3.3
Maximum DC Resistance (Ohm)	0.036
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tape and Reel
Length (mm)	7.6
Terminal Form	Surface Mount
Depth (mm)	7
