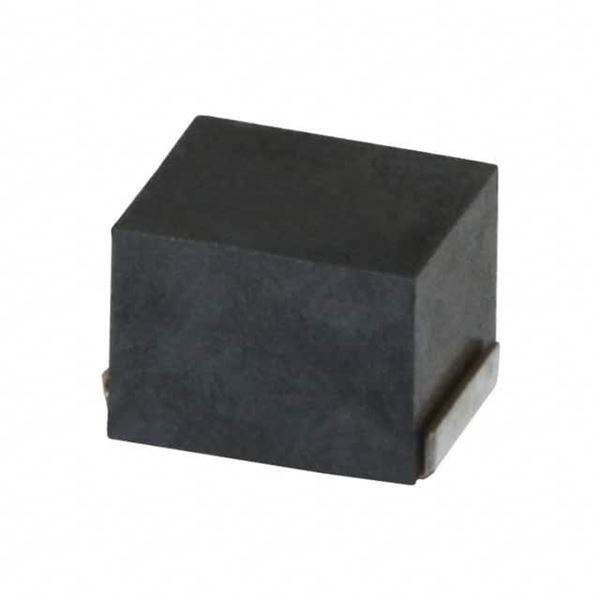

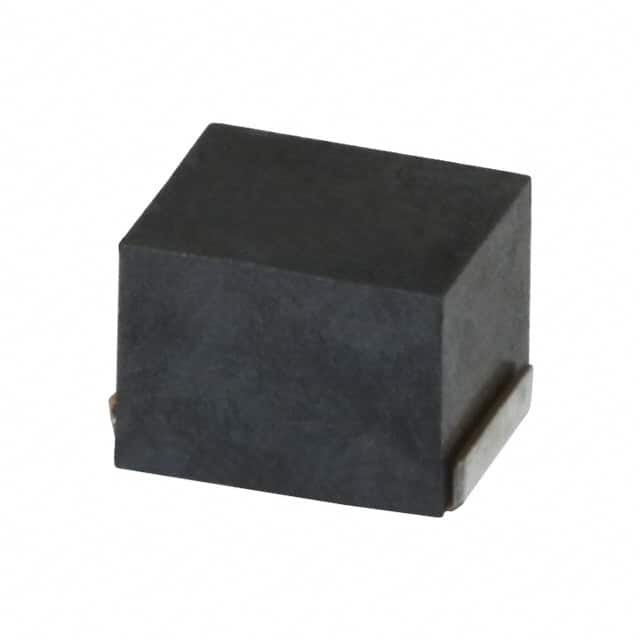

NLV32T-221J-EFD

SKU: 119833

Manufacturer: TDK

Inductor General Purpose Chip Molded/Unshielded Wirewound 220uH 5% 796KHz 20Q-Factor Ferrite 0.05A 21Ohm DCR 1210 Automotive T/R

2340 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	Yes
PPAP	Unknown
Type	General Purpose Chip
Technology	Wirewound
Protection Style	Molded/Unshielded
Core Body Material	Ferrite
Inductance (H)	220u
Tolerance	5%
Inductance Test Frequency (Hz)	796K
Maximum DC Current (A)	0.05
Maximum Saturation Current (A)	0.05
Maximum DC Resistance (Ohm)	21
Minimum Quality Factor	20
Quality Test Frequency (Hz)	796K
Minimum Self Resonant Frequency (Hz)	7M
Number of Terminals	2
Case Size	1210
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	3.4
Terminal Form	Surface Mount
Depth (mm)	2.7
