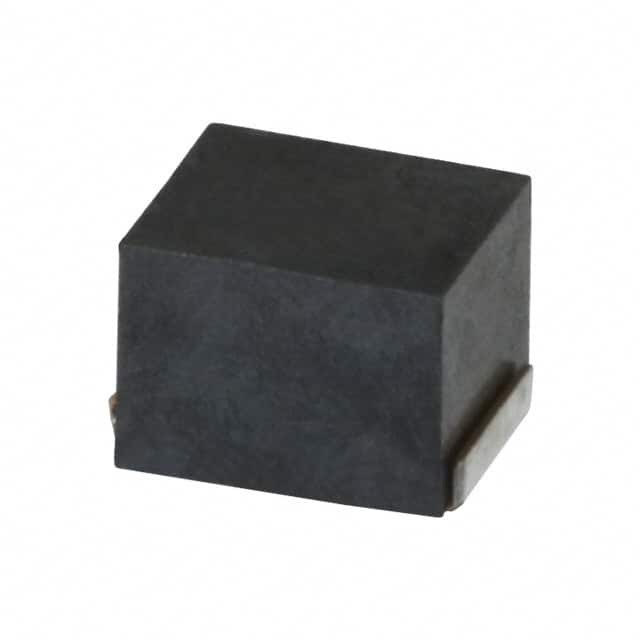

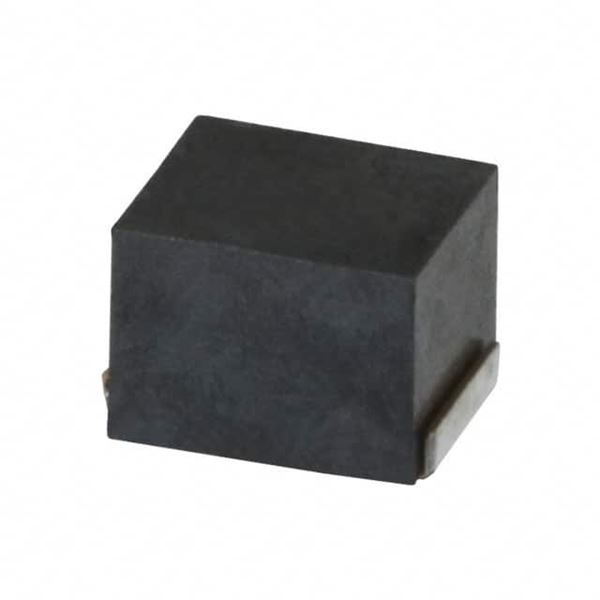

NLV32T-180J-PFD

SKU: 108497

Manufacturer: TDK

Inductor General Purpose Chip Molded/Unshielded Wirewound 18uH 5% 2.52MHz 30Q-Factor Ferrite 0.12A 3.3Ohm DCR 1210 Automotive T/R

3160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	NRND
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Type	General Purpose Chip
Technology	Wirewound
Protection Style	Molded/Unshielded
Core Body Material	Ferrite
Inductance (H)	18u
Inductance Decrease Percentage @ Isat (%)	10
Tolerance	5%
Inductance Test Frequency (Hz)	2.52M
Maximum DC Current (A)	0.12
Maximum Saturation Current (A)	0.12
Maximum DC Resistance (Ohm)	3.3
Minimum Quality Factor	30
Quality Test Frequency (Hz)	2.52M
Minimum Self Resonant Frequency (Hz)	20M
Number of Terminals	2
Case Size	1210
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	3.4
Terminal Form	Surface Mount
Depth (mm)	2.7
